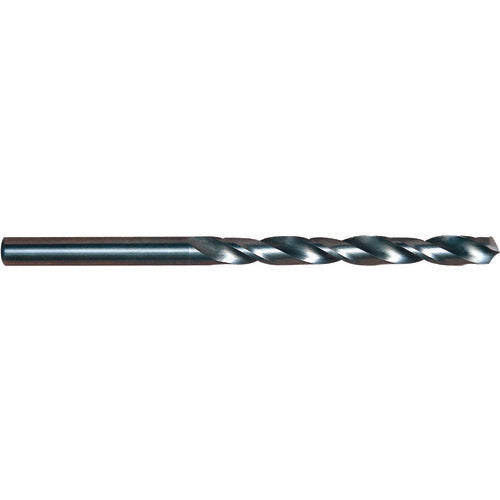

3/32″ Dia. × 3/32″ Shank × 1″ Flute Length × 2″ OAL, 118°, TiAlN, 2 Flute, External Coolant, Straight Solid Carbide Drill
Item #: YG14DH417006
Brand: YG-1 Cutting Tools
Model #: DH417006
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 3/32″ |
| Shank Type | Cylindrical |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 3/32″ |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.0938″ |
| Tool Type | Carbide Jobber Length Twist Drill TiAlN Coated |
| Length Group | 10xD |
| Measurement Type | Inch |
| Coating | TiAlN |
| Series/List # | DH417 |
| Applicable Material | Steel |
| Usable Length (LU) | 1″ |
| Connection Diameter Machine Side (DCONMS) | 3/32″ |
| Length Chip Flute (LCF) | 1″ |
| Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 2″ |
| Point Angle (SIG) | 118 Degrees |
| Flute Count (NOF) | 2 |
| Flute Helix Angle (FHA) | 30 Degrees |
