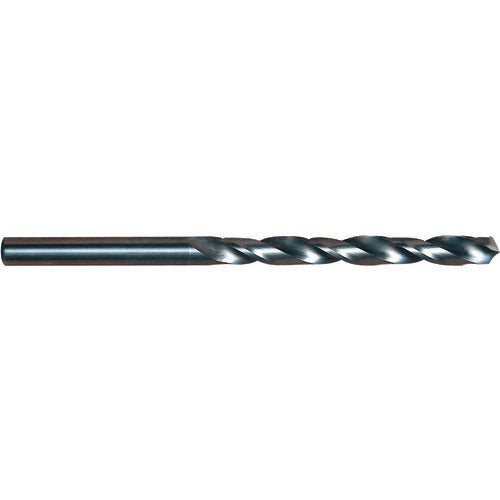

#41 Dia. × 0.096″ Shank × 1″ Flute Length × 2″ OAL, 118°, TiAlN, 2 Flute, External Coolant, Straight Solid Carbide Drill
Item #: YG14DH412141
Brand: YG-1 Cutting Tools
Model #: DH412141
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | #41 |
| Shank Type | Cylindrical |
| Decimal Equivalent | 0.096″ |
| Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Letter / Wire Gauge | #41 |
| Tool Type | Carbide Jobber Length Twist Drill TiAlN Coated |
| Length Group | 10xD |
| Measurement Type | Wire Gauge |
| Coating | TiAlN |
| Series/List # | DH412 |
| Applicable Material | Steel |
| Usable Length (LU) | 1″ |
| Connection Diameter Machine Side (DCONMS) | 0.096″ |
| Length Chip Flute (LCF) | 1″ |
| Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 2″ |
| Point Angle (SIG) | 118 Degrees |
| Flute Count (NOF) | 2 |
| Flute Helix Angle (FHA) | 30 Degrees |
