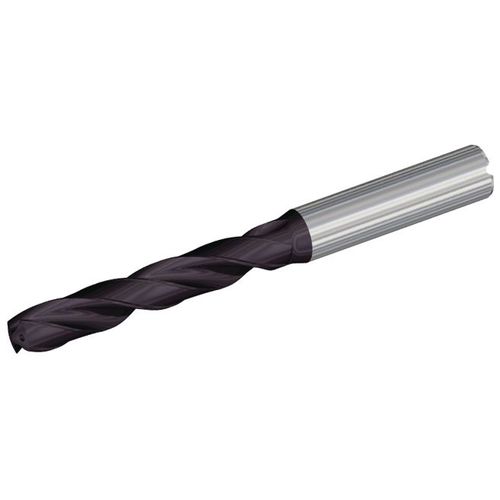

3.2 mm Dia. × 6 mm Shank × 28 mm Flute Length × 2.6″|66 mm OAL, 140°, TiAlN, Coolant Thru, Round Solid Carbide Drill
Item #: WK532964805
Brand: Widia
Model #: 2964805
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 3.2 mm |
| Shank Type | Round |
| Decimal Equivalent | 0.126″ |
| Shape | Center Cut |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 3.2 mm |
| Cutting Edge Material | Carbide |
| Length Group | 7xD |
| Tool Type | Center Cut |
| Coating | TiAlN |
| Flute Type | Spiral |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Grade | WU25PD |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Measurement Type | Metric |
| Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 23 mm |
| Point Angle (SIG) | 140 Degrees |
| Length Chip Flute (LCF) | 28 mm |
| Flute Helix Angle (FHA) | CW |
| Overall Length (OAL) | 2.6″ | 66 mm |
