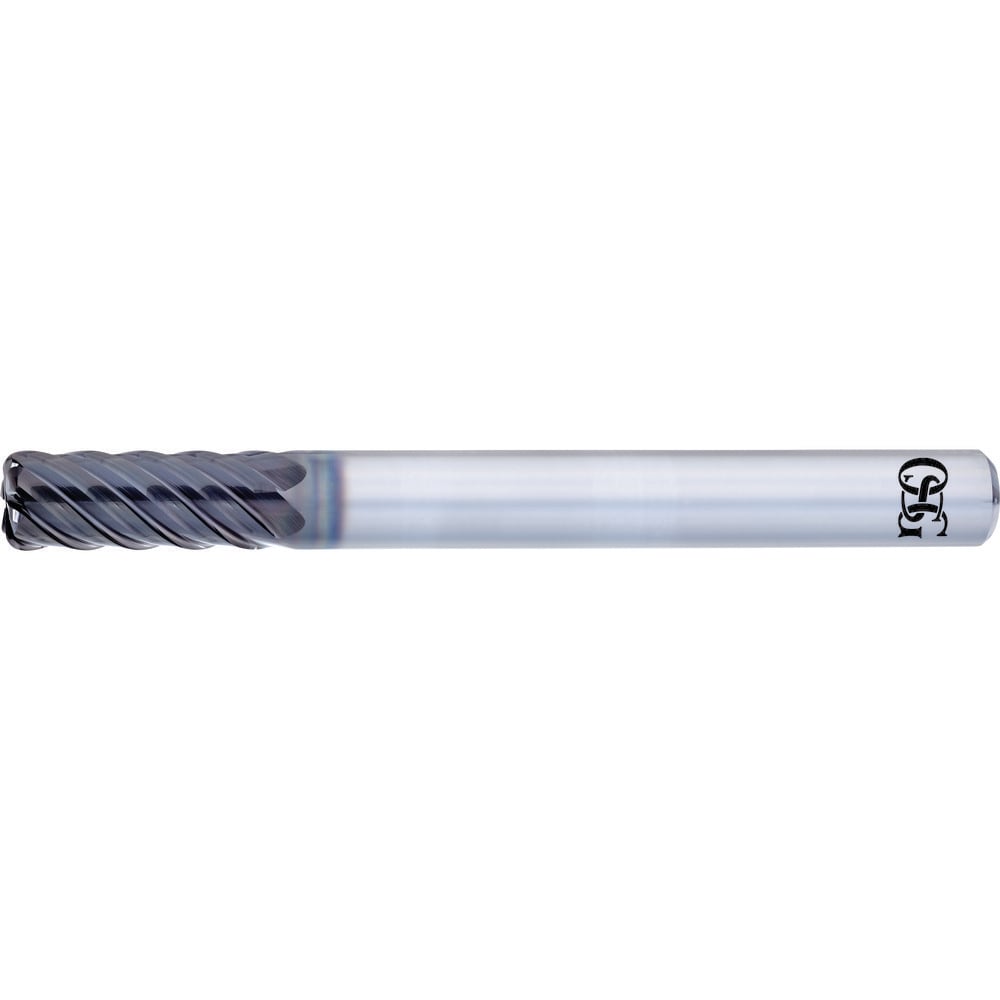

Brand: OSG / Part #: 84702723

Brand: OSG / Part #: 84702723


Item #: 80052368
Brand: OSG
Model #: 84702723

Product Specifications

Mill Diameter (Inch) 3/4
Corner Radius (Decimal Inch) 0.030
Coating/Finish DUROREY
End Mill Material Solid Carbide
Number Of Flutes 6
Single Or Double End Single End
Overall Length (Inch) 4-1/4
Length of Cut (Inch) 1-3/4
Cutting Direction Right Hand
Coolant Through No
Mill Diameter (Decimal Inch) 0.7500
Flute Direction Right Hand
Helix Angle 43
Chipbreaker No
End Type Corner Radius
Length Type Regular
Flute Type Helical
Extended Reach No
Shank Type Round
Centercutting Yes
Variable Index Yes
Variable Helix No
Material Removal Type Finishing
Shank Diameter (Inch) 3/4
Corner Radius Tolerance 0 ~ -0.0008"
Primary Workpiece Material Hard Material; Steel
Primary Workpiece Material Code H
Secondary Workpiece Material Steel
Secondary Workpiece Material Code P
Series 8470
Material Application Alloy Steel; Die Steel; Hardened Steel
Model Number 8470
Helix Style High
Manufacturers Catalog Number 84702723
$494.84

2% Off All Online Orders
Use Code: 2%OFF

Best Price Guarantee - Email Us A Better Published Price and We'll Beat It
