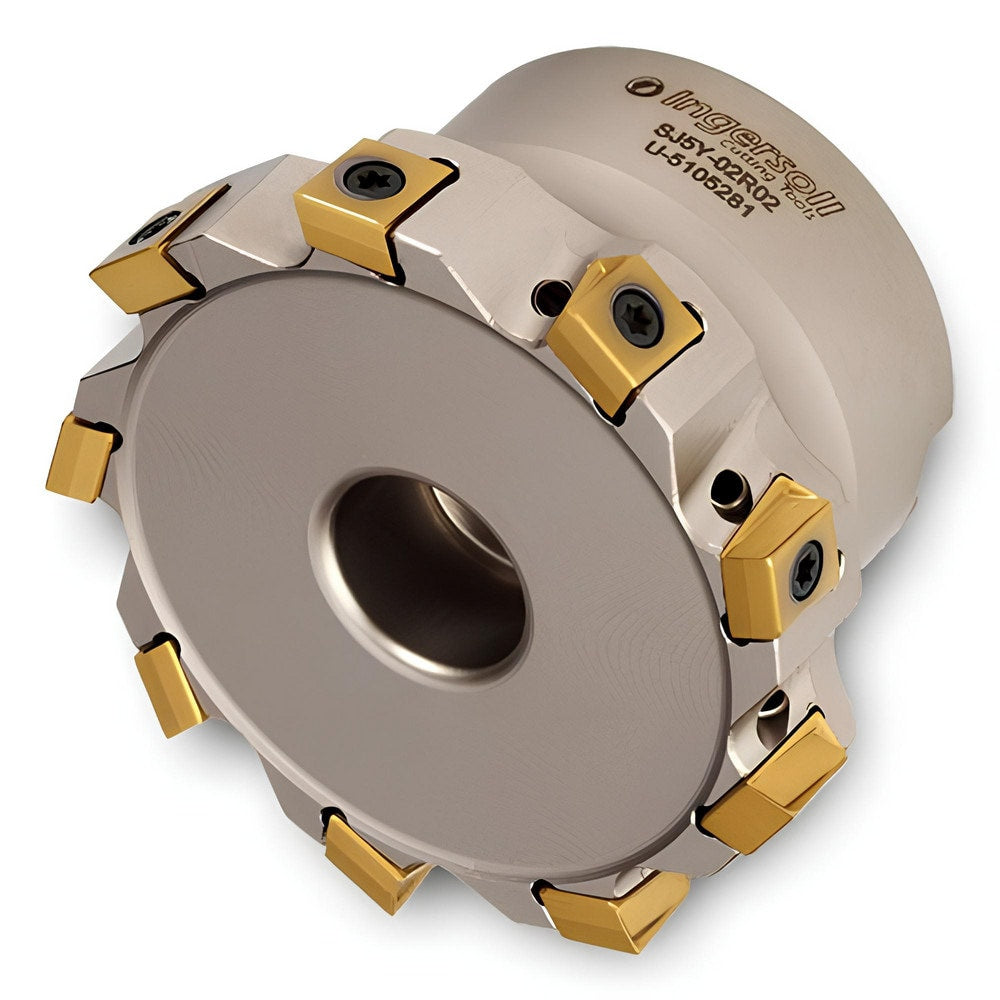

Brand: Ingersoll Cutting Tools / Part #: 3029701

Brand: Ingersoll Cutting Tools / Part #: 3029701


Item #: 96672357
Brand: Ingersoll Cutting Tools
Model #: 3029701

Product Specifications

Minimum Cutting Diameter (Decimal Inch) 1.5000
Minimum Cutting Diameter (Inch) 1-1/2
Minimum Cutting Diameter (mm) 38.10
Maximum Cutting Diameter (Inch) 1-1/2
Maximum Cutting Diameter (Decimal Inch) 1.5000
Maximum Depth of Cut (Decimal Inch) 0.3100
Arbor Hole Diameter (Decimal Inch) 0.5000
Compatible Insert Size Code 212
Cutter Style SJ5Y
Cutting Direction Right Hand
Insert Holding Method Screw
Lead Angle 90 deg
Rake Negative
Series SJ5Y
Overall Height (Decimal Inch) 1.5700
Keyway Width (Inch) 1/4
Keyway Width (Decimal Inch) 0.2500
Pitch Type Close
Tool Application Facing; Shouldering
Tool Performance General Purpose
Primary Workpiece Material Universal
Primary Workpiece Material Code O
Cutting Edge Length (Decimal Inch) 0.3100
Complete Insert Compatibility DGM212?
Toolholder Material Steel
Manufacturers Catalog Number SJ5Y-01R01
Coolant Through Yes
Number Of Cutter Inserts 6
Number Of Flutes 9
