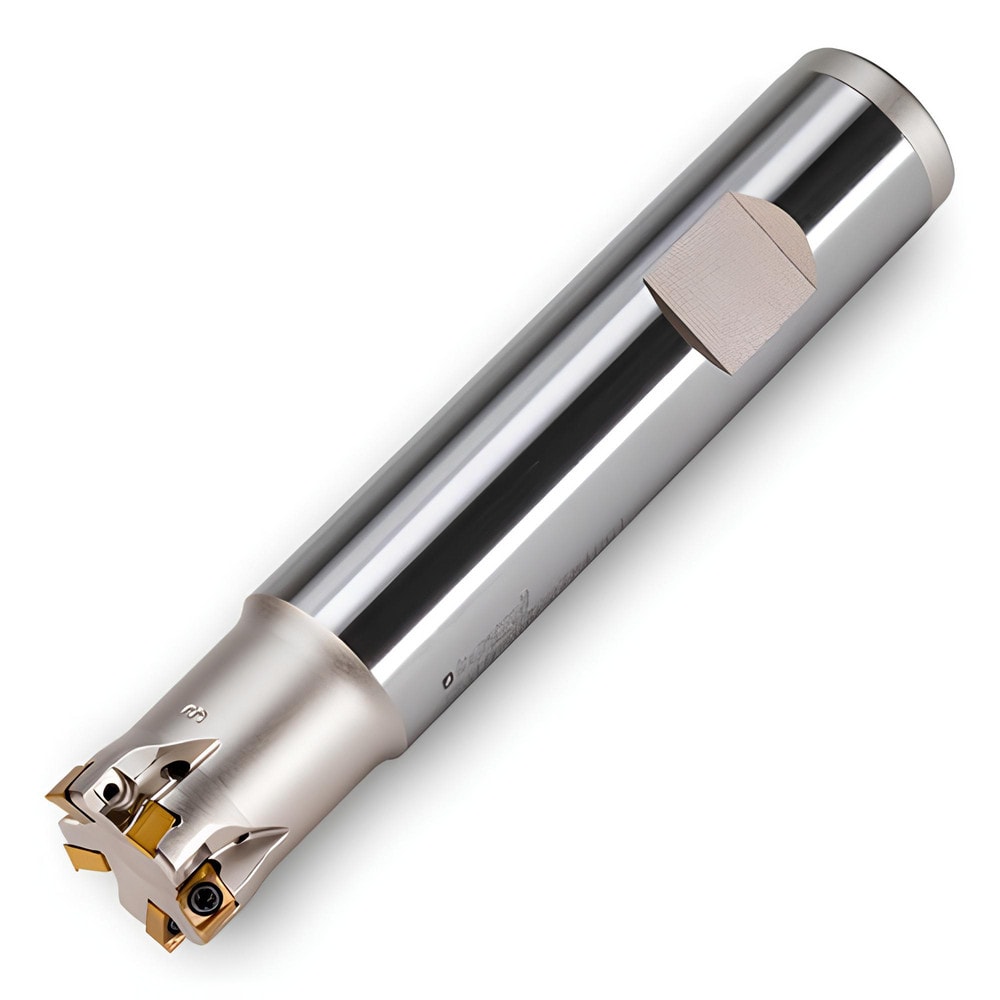

Brand: Ingersoll Cutting Tools / Part #: 2925845

Brand: Ingersoll Cutting Tools / Part #: 2925845


Item #: 96745203
Brand: Ingersoll Cutting Tools
Model #: 2925845

Product Specifications

Minimum Cutting Diameter (Decimal Inch) 1.2500
Minimum Cutting Diameter (Inch) 1-1/4
Maximum Cutting Diameter (Decimal Inch) 1.2500
Maximum Cutting Diameter (Inch) 1-1/4
Maximum Depth of Cut (Decimal Inch) 0.1400
Maximum Depth of Cut (Inch) 9/64
Cutter Style 1TJ1B
Shank Type Weldon Flat
Shank Diameter (Decimal Inch) 1.2500
Shank Diameter (Inch) 1-1/4
Maximum Ramping Angle 0 ?
Insert Holding Method Screw
Overall Length (mm) 127.0000
Overall Length (Decimal Inch) 5.0000
Tool Material Steel
Series 1TJ1B
Flute Type Spiral
Lead Angle 90
Shank Length (Inch) 3-1/2
Shank Length (Decimal Inch) 3.5000
Head Length (Inch) 1-1/2
Head Length (Decimal Inch) 1.5000
Tool Application Facing; Shouldering
Tool Performance General Purpose
Primary Workpiece Material Universal
End Mill Type Shoulder Square End Mill
Rake Negative
Complete Insert Compatibility UNHU0402..; MNHU0402..
Insert Compatibility UNHU0402..; MNHU0402..
Hand of Holder Right Hand
Multi-Use Tool Yes
Manufacturers Catalog Number 1TJ1B-12020E2R01
Usable Length (mm) 38.100
Number Of Flutes 8
Usable Length (Decimal Inch) 1.5000
Number Of Cutter Inserts 8
Coolant Through Yes
$495.00
