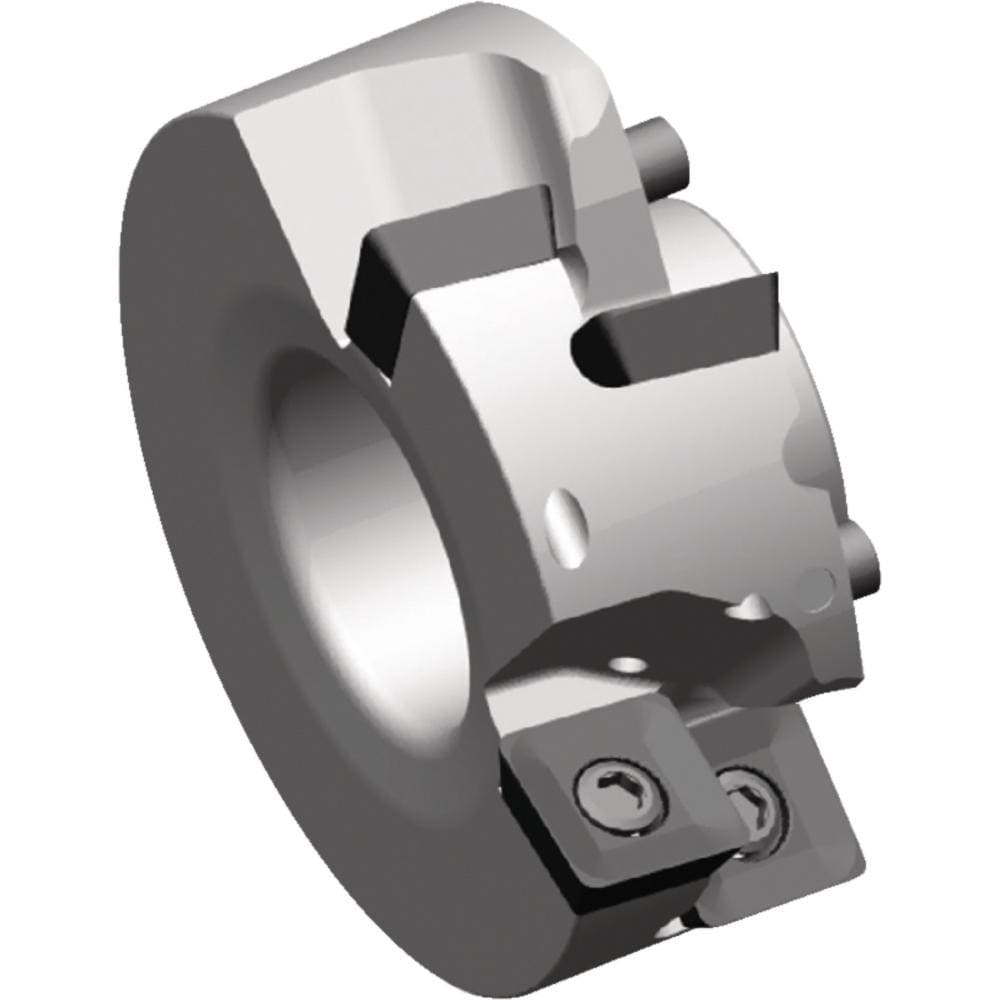

Brand: Widia / Part #: 2021428
Item #: 03948619
Brand: Widia
Model #: 2021428
Product Specifications
| Minimum Cutting Diameter (mm) | 50.00 |
| Maximum Cutting Diameter (mm) | 50.00 |
| Maximum Depth of Cut (mm) | 21.00 |
| Cutter Style | M390 |
| Shank Type | Modular Connection |
| Maximum Ramping Angle | 0 |
| Insert Holding Method | Screw |
| Overall Length (mm) | 21.0000 |
| Tool Material | Steel |
| Series | M390 |
| Flute Type | Helical |
| Lead Angle | 90 |
| Tool Application | Milling; Slotting; Shouldering |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| End Mill Type | Helical End Mill |
| Rake | Positive |
| Complete Insert Compatibility | SDMX; SDMT |
| Insert Compatibility | SD.. |
| Hand of Holder | Right Hand |
| Multi-Use Tool | No |
| ISO Number | 12393051200 |
| Manufacturers Catalog Number | 12393051200 |
| Usable Length (mm) | 21.000 |
| Number Of Flutes | 3 |
| Number Of Cutter Inserts | 6 |
| Coolant Through | Yes |
