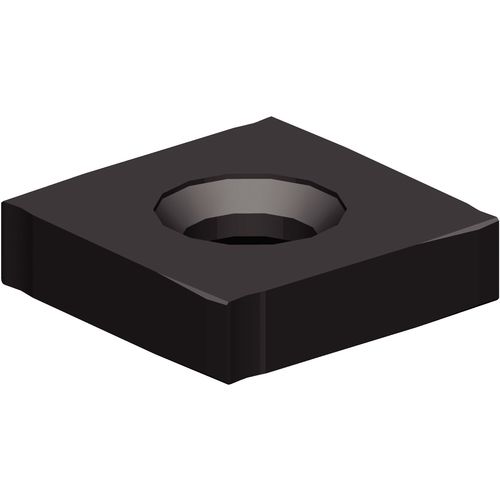

123506599 THM INSERT
Item #: WK512009671
Brand: Widia
Model #: 2009671
| Product Specifications | |
|---|---|
| Applicable Material | Cast Iron | Aluminum / Non-Ferrous Materials |
| Shape | 90° Square |
| Cutting Edge Length (L) | 0.433″ |
| Clearance Angle Major (AN) | 0 Degrees |
| Insert Length (INSL) | 0.433″ |
| Corner Chamfer Width (CHW) | 0.006″ |
| Insert Width (W1) | 0.433″ |
| Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 0.433″ |
| Series/List # | M95 |
| Insert Thickness (S) | 0.091″ |
| Hole Diameter | 3.7 mm |
| Insert Included Angle (EPSR) | 0 Degrees |
| Cutting Edge Material | Carbide |
| Coating | Uncoated |
| Number of Cutting Edges | 4 |
| Grade | THM |
