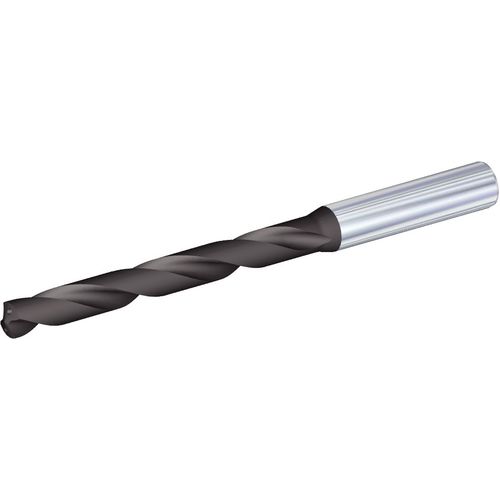

#58 Dia. × 0.158″ Shank × 0.47″ Flute Length × 2.28″ OAL, 140°, TiAlN, Coolant Thru, Round Solid Carbide Drill
Item #: WK406023128
Brand: Widia
Model #: 6023128
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 1.07 mm |
| Shape | Center Cut |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 1.07 mm |
| Cutting Edge Material | Carbide |
| Length Group | 9xD |
| Tool Type | Solid Carbide Drill |
| Coating | TiAlN |
| Flute Type | Helical |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Grade | WU25PD |
| Connection Diameter Machine Side (DCONMS) | 4 mm |
| Measurement Type | Metric |
| Coolant Supply Property (CSP) | Coolant Thru |
| Series/List # | VDS403 | VariDrill |
| Point Angle (SIG) | 140 Degrees |
| Usable Length (LU) | 10 mm |
| Point Length (PL) | 0.16 mm |
| Length Chip Flute (LCF) | 12 mm |
| Functional Length (LF) | 57.84 mm |
| Overall Length (OAL) | 58 mm |
| Flute Helix Angle (FHA) | 25 Degrees |
| Flute Count (NOF) | 2 |
| Shank Length (LS) | 28 mm |
| Cutting Direction (HAND) | Right Hand |
| Shank Type | Cylindrical |
| Body Material | Carbide |
