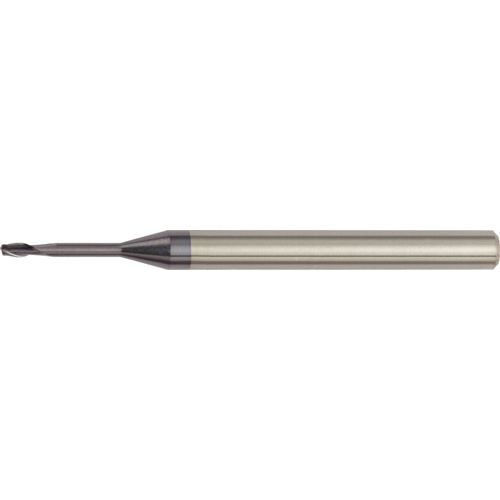

2XE30X4X3X75 SC FIN 2FL CARB EM
Item #: WK402256498
Brand: Widia
Model #: 2256498
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 2 mm |
| Neck Diameter (DN) | 1.96 mm |
| Connection Diameter Machine Side (DCONMS) | 4 mm |
| Head Length (LH) | 20 mm |
| Depth of Cut Maximum (APMX) | 3 mm |
| Tool Type | Center Cut|Single-End |
| Overall Length (OAL) | 75 mm |
| Coolant Supply Property (CSP) | External |
| Cutting Edge Material | Carbide |
| Style | Finishing |
| Coating | AlTiN |
| Decimal Equivalent | 0.0787″ |
| Flute Count (NOF) | 2 |
| Measurement Type | Metric |
| Flute Helix Angle (FHA) | 30 Degrees |
| Series/List # | 7N_2 |
| Shank Type | Straight | Cylindrical |
| Shank Length (LS) | 1″ |
| End Shape | Square |
| Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 20 mm |
| Single / Double End | Single End |
| Applicable Material | Steel | Cast Iron | Hard Materials |
| Center Cutting | Yes |
| Grade | WU10PE |
