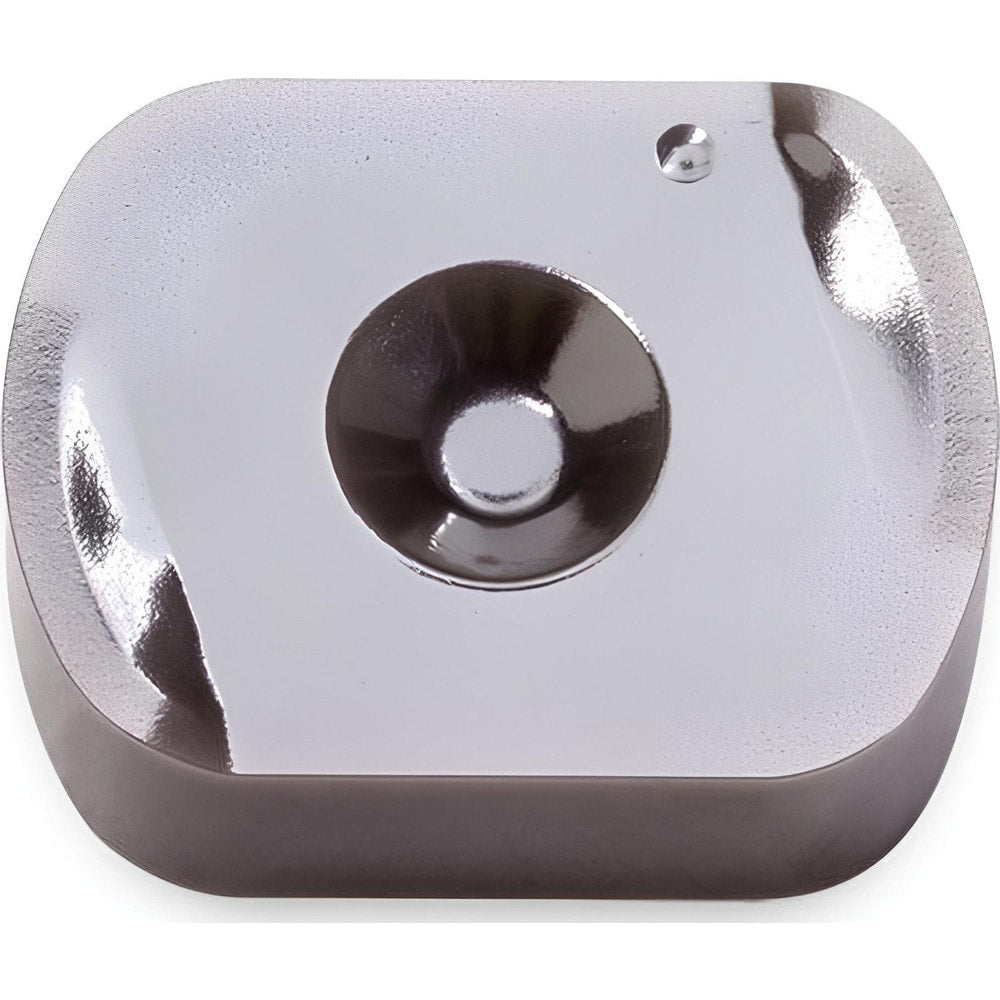

Brand: Ingersoll Cutting Tools / Part #: 6302575
Item #: 97750863
Brand: Ingersoll Cutting Tools
Model #: 6302575
Product Specifications
| Insert Style | LNXF |
| Insert Size Code | 0905 |
| Insert Material | Silicon Nitride |
| Manufacturer Grade | IN76N |
| Inscribed Circle (Decimal Inch) | 0.3540 |
| Corner Radius (Decimal Inch) | 0.1340 |
| Insert Hand | Right Hand |
| Series | LNXF |
| Coating Process | Uncoated |
| Maximum Depth of Cut (Decimal Inch) | 0.4720 |
| Number Of Cutting Edges | 4 |
| Insert Shape | Rectangle |
| Rake | Negative |
| Primary Workpiece Material | Super-alloys & Titanium |
| Primary Workpiece Material Code | S |
| Ansi Code | LNXF0905R01 |
| Rake Angle | 0.000 |
| Manufacturers Catalog Number | LNXF0905R01 IN76N |
| Cutter Series Compatibility | TG1Q; TG2Q; 1ZG3F |
| Chip Breaker | None |
| Cutting Direction | Right Hand |
| Shape | Rectangle |
| Length of Cut (mm) | 11.9900 |
| Insert Holding Method | Screw |
| Thickness (mm) | 5.0000 |
| Coating Classification | Uncoated |
| Single or Double Sided Insert | Double |
| Coating/Finish | Uncoated |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.1650 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.4720 |
