Brand: Widia / Part #: 3655898

Brand: Widia / Part #: 3655898


Item #: 98036809
Brand: Widia
Model #: 3655898

Product Specifications

Internal or External External
Maximum Depth of Cut (Decimal Inch) 0.4400
Hand of Holder Right Hand
Maximum Groove Width (Decimal Inch) 0.1250
Minimum Groove Width (Decimal Inch) 0.1180
Toolholder Style WMTSR
Tool Material Steel
Insert Holding Method Clamp
Compatible Insert Size Code S125
Insert Compatibility WMTS125I3P08
Shank Height (Inch) 5/8
Shank Height (Decimal Inch) 0.6250
Shank Length (Decimal Inch) 3.6950
Shank Width/Diameter (Decimal Inch) 0.6250
Shank Width/Diameter (Inch) 5/8
Series WMT
Overall Length (Decimal Inch) 5.0000

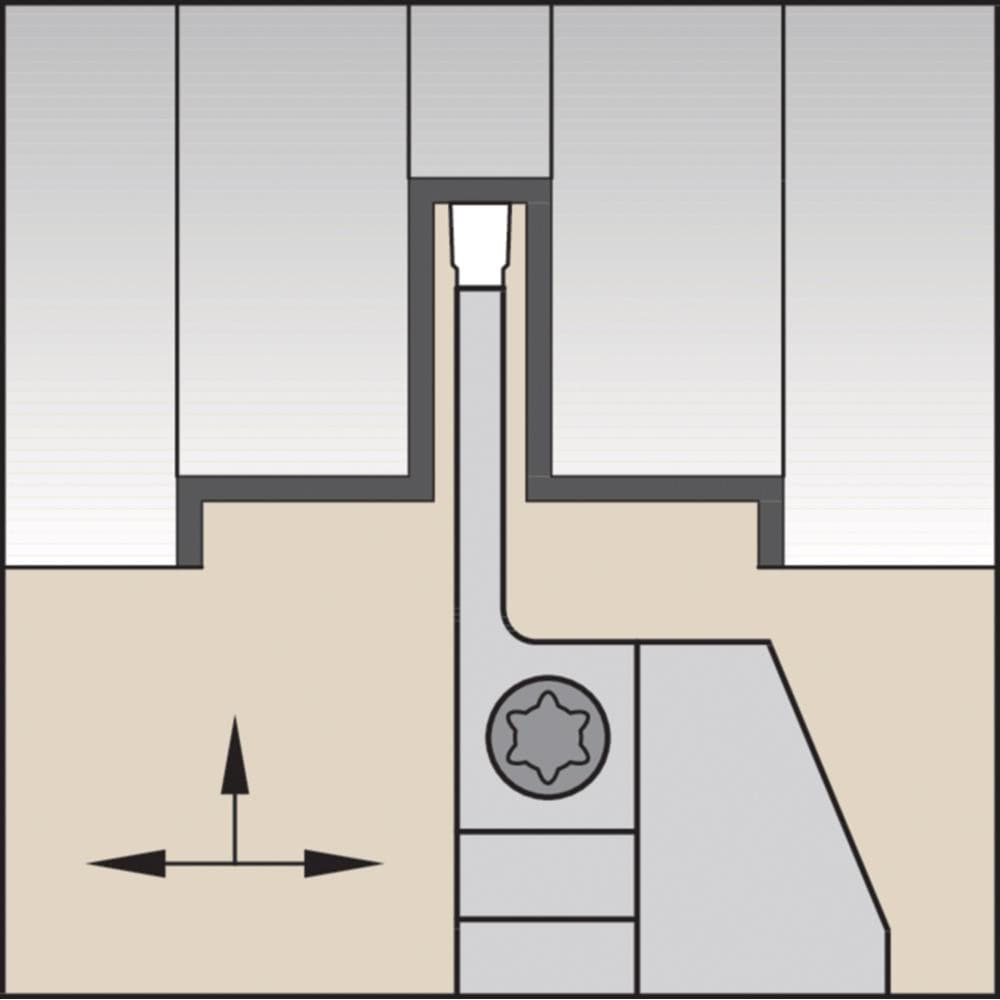

Cutting Tool Application Grooving; Cut-Off; Turning
Back of Bar to Cutting Edge (Decimal Inch) 0.6240
Head Height (mm) 23.830
Head Length (Decimal Inch) 1.3051
Primary Workpiece Material Universal
Insert Seat Size 3.0
Coolant Through No
$131.45
