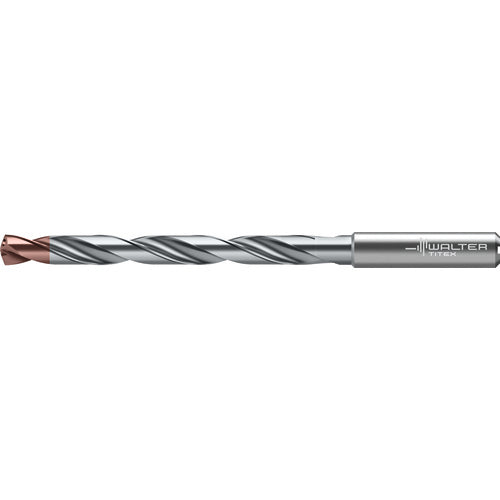

3.9 mm Dia. × 6 mm Shank × 45 mm Flute Length × 85 mm OAL, 8xD, 140 Degrees, Axial Inclined Exit, DIN 6535 HA, Cylindrical Solid Carbide Drill DC175 WJ30RY
Item #: TT108128191
Brand: Walter-Titex
Model #: 8128191
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 3.9 mm |
| Cutting Edge Material | Carbide |
| Length Group | 8xD |
| Tool Type | High Performance |
| Coating | TiAlSiN |
| Grade | WJ30RY |
| Applicable Material | Steel | Stainless Steel | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Series/List # | DC175 |
| Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 37 mm |
| Point Angle (SIG) | 140 Degrees |
| Length Chip Flute (LCF) | 45 mm |
| Functional Length (LF) | 45 mm |
| Overall Length (OAL) | 85 mm |
| Flute Helix Angle (FHA) | 30 Degrees |
| Flute Count (NOF) | 2 |
| Shank Length (LS) | 36 mm |
| Cutting Direction (HAND) | Right Hand |
| Shank Type | Cylindrical |
| Body Material | Carbide |
| Shank Standard | DIN 6535 HA |
