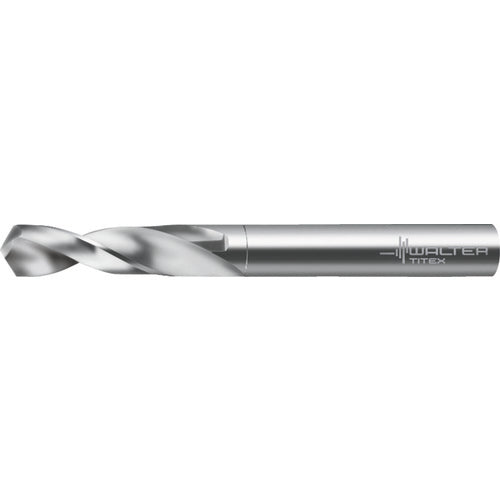

3.9 mm Dia. × 3.9 mm Shank × 22 mm Flute Length × 55 mm OAL, 3xD, 118°, 2xD Flute, External Coolant, DIN 6539, Round Solid Carbide Drill
Item #: TT105057568
Brand: Walter-Titex
Model #: 5057568
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 3.9 mm |
| Shank Standard | DIN 6539 |
| Decimal Equivalent | 0.1535″ |
| Shape | Solid Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 3.9 mm |
| Cutting Edge Material | Carbide |
| Length Group | 3xD |
| Tool Type | Solid Carbide |
| Connection Diameter Machine Side (DCONMS) | 3.9 mm |
| Measurement Type | Metric |
| Coolant Supply Property (CSP) | External |
| Series/List # | A1163 |
| Point Angle (SIG) | 118 Degrees |
| Usable Length (LU) | 15 mm |
| Flute Helix Angle (FHA) | 30 Degrees |
| Length Chip Flute (LCF) | 22 mm |
| Shank Type | Round |
| Overall Length (OAL) | 55 mm |
