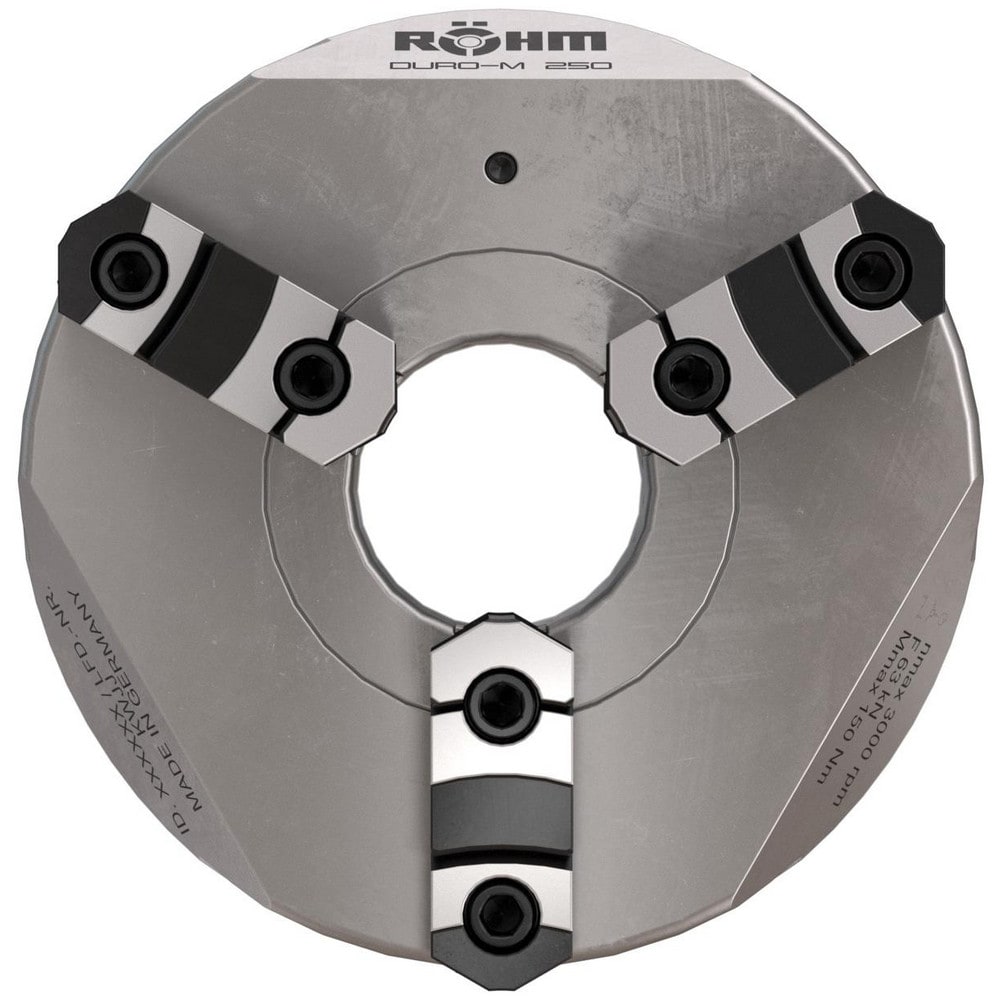

Brand: Rohm / Part #: 185314
Item #: 13528419
Brand: Rohm
Model #: 185314
Product Specifications
| Chuck Type | Self-Centering |
| Number Of Jaws | 3 |
| Jaw Type | Two-Piece Jaws |
| Adjustable | Yes |
| Through-Hole Diameter (Inch) | 3 |
| Through-Hole Diameter (Decimal Inch) | 2.9916 |
| Body Material | Forged Steel |
| Through-Hole Diameter (mm) | 76 |
| Reversible Jaws | Reversible Jaws |
| Chuck Diameter (Decimal Inch) | 250 |
| Chuck Diameter (Inch) | 10 |
| Chuck Diameter (mm) | 250 |
| Minimum Jaw Capacity (Inch) | 2.3600 (Internal); 0.2000 (External) |
| Minimum Jaw Capacity (mm) | 5.00 |
| Maximum Jaw Capacity (mm) | 250 |
| Maximum Jaw Capacity (Inch) | 10.0400 (External) |
| Jaw Height (Inch) | 2-1/4 |
| Jaw Height (Decimal Inch) | 2.26 |
| Jaw Height (mm) | 57.6 |
| Maximum Rpm | 3000 |
| Mount Type | Rear |
| Axial Runout (mm) | 0.06 |
| Axial Runout (Decimal Inch) | 0.0024 |
| Body Length (Decimal Inch) | 3.23 |
| Body Length | 3-1/4 |
| Body Length | 82 |
| Series | DURO-M |
| Material | Steel |
| Contents | Mounting Screws; set of base and top jaws; T-bar |
| Product Service Code | 3419 |
