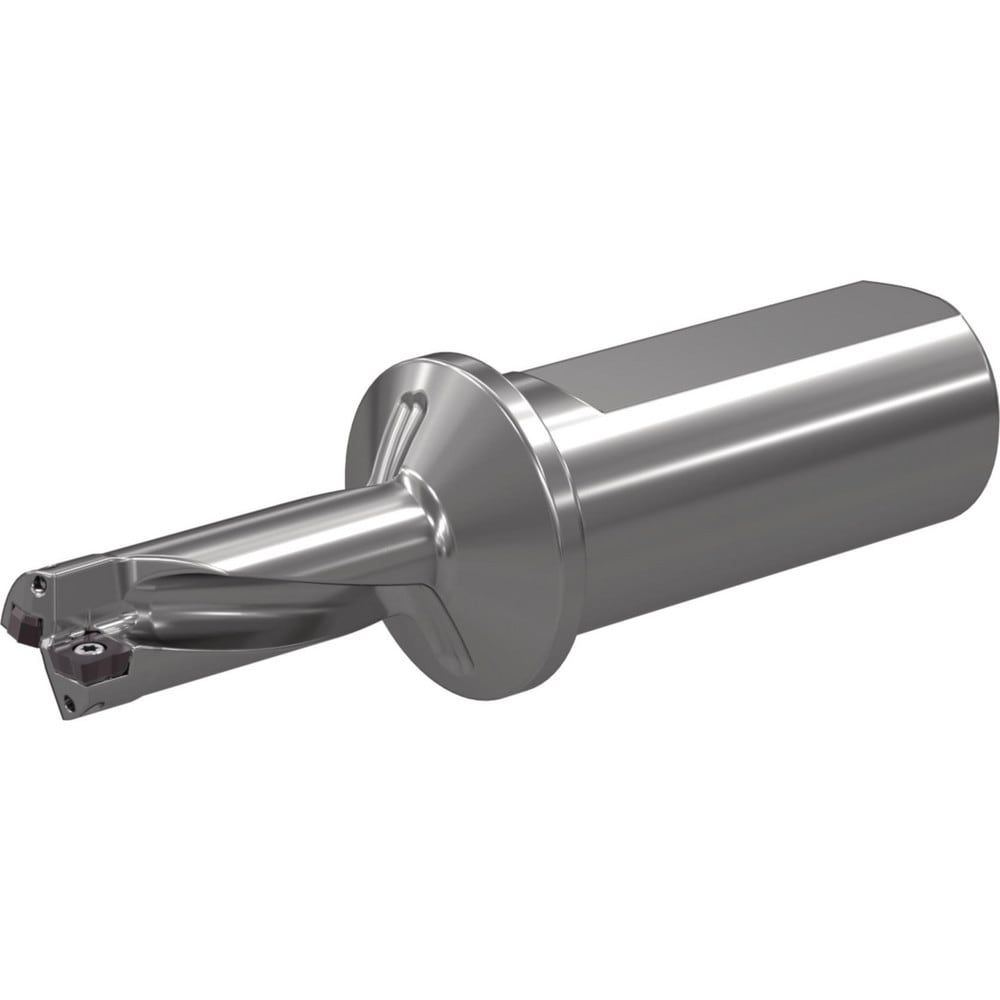

Brand: Widia / Part #: 5577927

Brand: Widia / Part #: 5577927


Item #: 90860586
Brand: Widia
Model #: 5577927

Product Specifications

Maximum Drill Depth 1.4820 in
Drill Depth by Diameter Ratio 2xD
Maximum Depth of Cut (mm) 37.65
Shank Type Weldon Flat
Shank Diameter (mm) 25.0000
Shank Diameter (Decimal Inch) 0.9843
Cutting Direction Right Hand
Drill Body Length to Flange (mm) 62.00
Toolholder Style TCF
Nose Diameter (Mm) ( - 2 Decimals) 18.50
Overall Length (mm) 118.6500
Overall Length 118.65
Through Coolant Yes
Series Top Cut 4
Flute Length (mm) 58.00
Shank Length (mm) 56.000
Gage Length (mm) 62.65
Primary Workpiece Material Non-Ferrous Metal; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel
Primary Workpiece Material Code P; S; K; M; N
Number of Shank Flats 1
Flute Type Variable Index
Maximum Cutting Diameter (mm) 18.50
Projection (mm) 62.650
Number Of Flutes 2
Coolant Through Yes
$357.31
