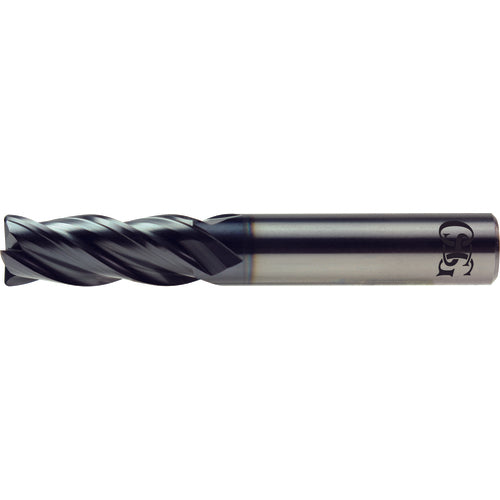

3/16″ Dia. × 3/16″ Shank × 5/16″ DOC × 2″ OAL, Carbide, TiALN, 4 Flute, 35° Helix, Round, Chamfer, Solid End Mill
Item #: TP45VG4361875
Brand: OSG USA, Inc.
Model #: VG4361875
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/16″ |
| Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 3/16″ |
| End Shape | Chamfer |
| Depth of Cut Maximum (APMX) | 5/16″ |
| Usable Length (LU) | 5/16″ |
| Overall Length (OAL) | 2″ |
| Corner Radius (RE) | None |
| Cutting Edge Material | Carbide |
| Corner Chamfer Width (CHW) | 0.01″ |
| Coating | AlTiN |
| Style | Corner Chamfer |
| Flute Count (NOF) | 4 |
| Decimal Equivalent | 0.1875″ |
| Flute Helix Angle (FHA) | 35 Degrees |
| Series/List # | VG436 |
