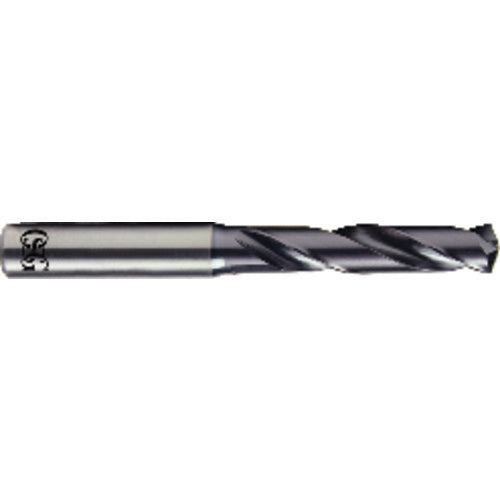

2mm Carbide 3xD HY-PRO®, CARB Drill
Item #: TP45HP2430787
Brand: OSG USA, Inc.
Model #: HP243-0787
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 2 mm |
| Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 2 mm |
| Tool Type | Solid Carbide |
| Length Group | 3xD |
| Flute Type | Spiral |
| Coating | EgiAs |
| Measurement Type | Metric |
| Applicable Material | Aluminum / Non-Ferrous Materials | Hard Materials |
| Series/List # | HP243 |
| Connection Diameter Machine Side (DCONMS) | 3 mm |
| Usable Length (LU) | 13 mm |
| Coolant Supply Property (CSP) | External |
| Length Chip Flute (LCF) | 13 mm |
| Point Angle (SIG) | 140 Degrees |
| Overall Length (OAL) | 45 mm |
| Functional Length (LF) | 13 mm |
| Flute Count (NOF) | 2 |
| Shape | Solid Carbide |
| Cutting Direction (HAND) | Right Hand |
