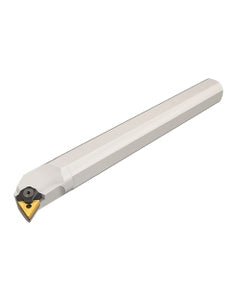

S40U MTLNL-22W
Item #: EH363600610
Brand: Iscar
Model #: 3600610
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 40 mm |
| Application | | Int. 60° Triangle 95° Approach | |
| Overall Length (OAL) | 350 mm |
| Rake Angle Axial (GAMP) | -6 Degrees |
| Reduced Body Diameter Length (LDRED) | 50 mm |
| Rake Angle Radial (GAMF) | -10 Degrees |
| Shank Height (H) | 36 mm |
| Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 27 mm |
| Body Material | Steel |
| Master Insert Identification (MIID) | TNMA 220408-F3P |
| Cutting Position | Internal |
| Minimum Bore Diameter (DMIN) | 49 mm |
| Measurement Type | Metric |
| Cutting Direction (HAND) | Left Hand |
