Brand: Widia / Part #: 3632122

Brand: Widia / Part #: 3632122


Item #: 99720906
Brand: Widia
Model #: 3632122

Product Specifications

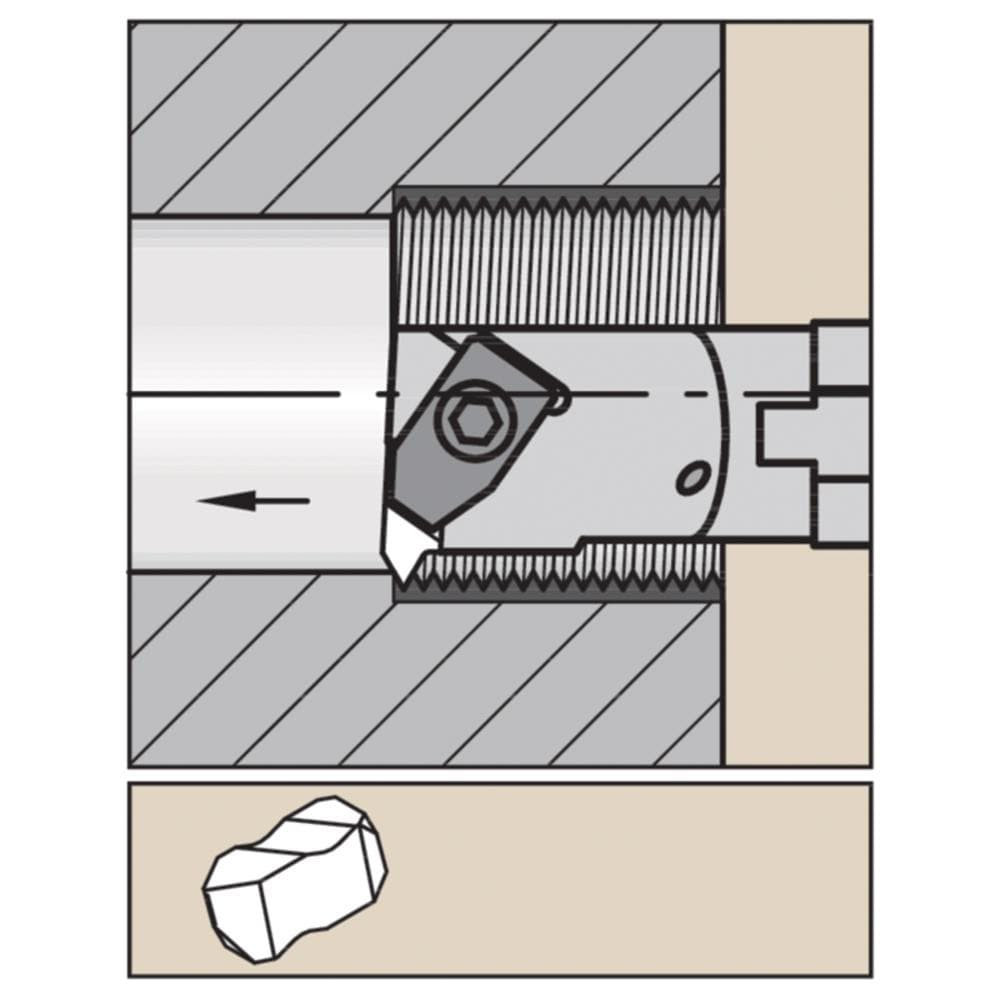

Thread Type Internal
Hand of Holder Right Hand
Shank Width/Diameter (Decimal Inch) 2.0000
Compatible Insert Size Code 3
Shank Width/Diameter (Inch) 2
Toolholder Style NER
Insert Compatibility N.3L
Coolant Entry Style Code 1-Axial Concentric Entry
Insert Holding Method Clamp
Shank Height (Decimal Inch) 0.0000
Shank Length (Inch) 16
Shank Length (Decimal Inch) 16.0000
Overall Length (Inch) 16
Overall Length (Decimal Inch) 16.0000
Minimum Bore Diameter (Decimal Inch) 2.5000
Series A-NE
Multi-use Tool Yes
Cutting Tool Application Grooving; Chamfering; Threading
Maximum Depth of Cut (Decimal Inch) 0.1875
Adjustable Overhang Yes
Back of Bar to Cutting Edge (Inch) 2-1/4
Back of Bar to Cutting Edge (Decimal Inch) 2.2500
Center to Cutting Edge (Decimal Inch) 1.2500
Insert Inscribed Circle (Decimal Inch) 0.3438
Insert Inscribed Circle (Inch) 11/32
Insert Inscribed Circle (mm) 8.73
Primary Workpiece Material Code P; S; H; K; M; N; O
Coolant Hole Thread Size (Inch) 1/4-18 NPT
Toolholder Material Steel
Insert Thickness (Decimal Inch) 0.1950
Style NER
Coolant Through Yes
$387.99
