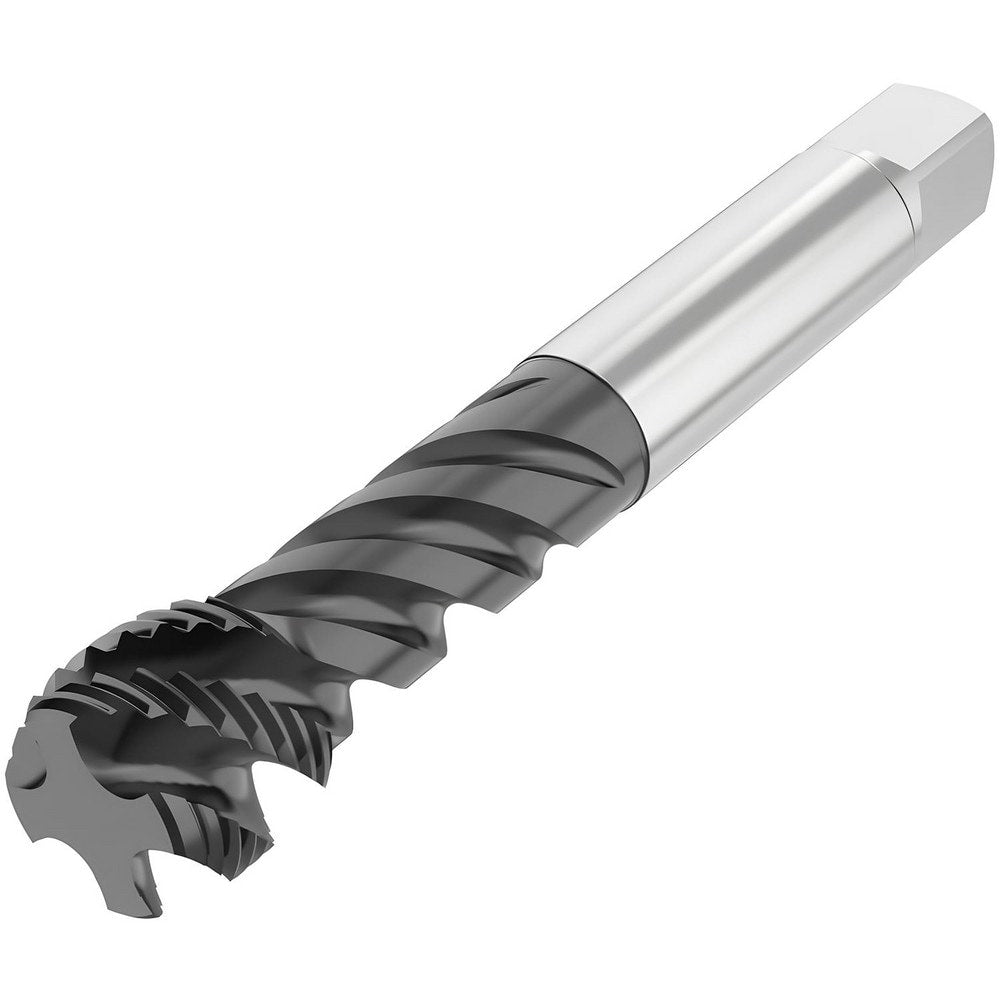

Brand: Seco / Part #: 10139085

Brand: Seco / Part #: 10139085


Item #: 98789456
Brand: Seco
Model #: 10139085

Product Specifications

Thread Size (Inch) G 1/4-19
Chamfer Modified Bottoming
Class Of Fit NORMAL-X
Number Of Flutes 3
Material HSS-E-PM
Threads per Inch 19
Thread Direction Right Hand
Flute Direction Right Hand
Coating/Finish HL
Thread Depth (mm) 14.00
Coolant Through No
Thread Length (mm) 14.00
Overall Length (mm) 100.0000
Thread Pitch (Decimal Inch) 0.0526
Thread Pitch (mm) 1.34
Thread Standard G
Helix Angle 45.00
Oversize No
Application Blind Hole Threading
Shank Diameter (mm) 11.0000
Neck Length (mm) 57.00
Tapping Depth (mm) 71.00
Flute Style Spiral
Material Application Non-Ferrous Metal; Superalloy; Stainless Steel; Cast Iron; Steel
Series T34
Shank Length (mm) 29.000
$153.45
