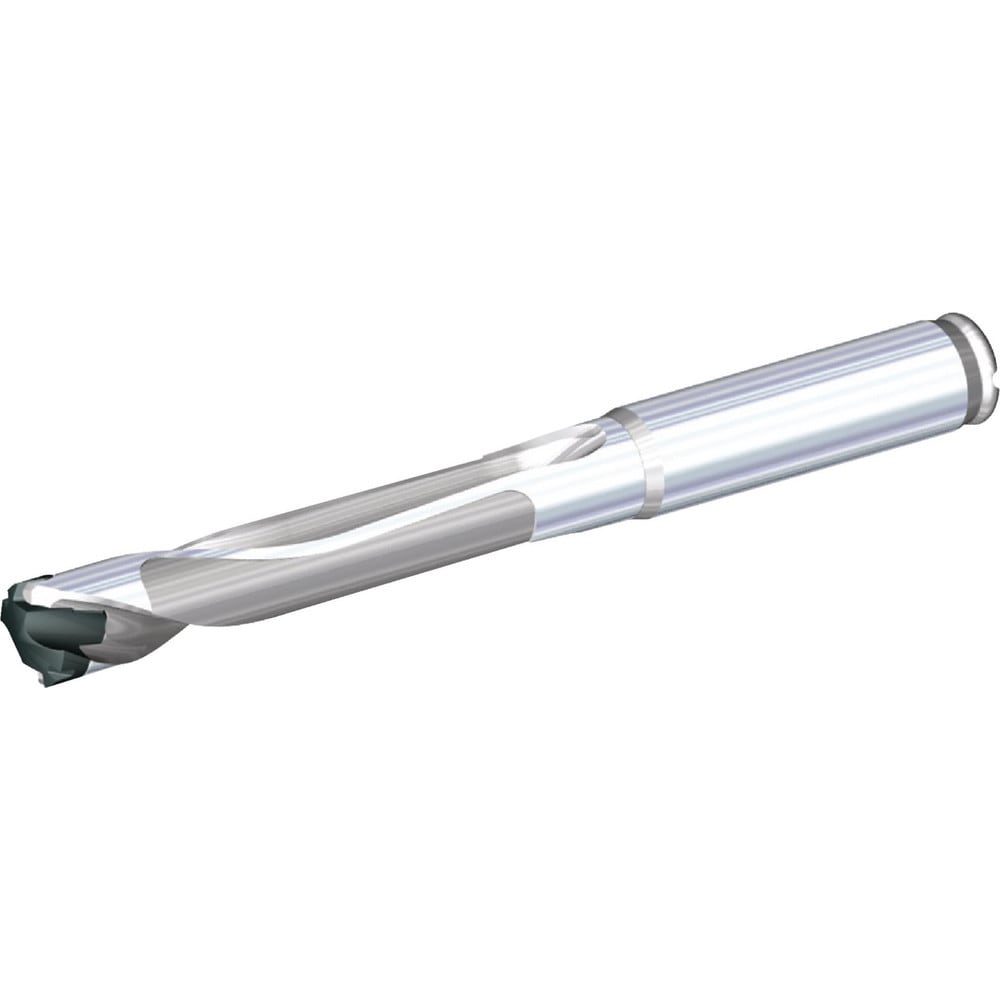

Brand: Widia / Part #: 3992506

Brand: Widia / Part #: 3992506


Item #: 90311721
Brand: Widia
Model #: 3992506

Product Specifications

Minimum Drill Diameter (Decimal Inch) 0.9449
Maximum Drill Diameter (Decimal Inch) 0.9839
Drill Depth by Diameter Ratio 5xD
Maximum Drill Depth (Fractional Inch) 4-59/64
Maximum Drill Depth (Decimal Inch) 4.9213
Shank Type Cylindrical
Insert Style TDM
Shank Diameter (Inch) 1
Shank Diameter (Decimal Inch) 1.0000
Insert Seat Size W33
Tool Material Steel
Compatible Insert Style TDM
Compatible Insert Size Code W33
Overall Length (Decimal Inch) 9.3740
Series TDM1
Toolholder Style TDM1
Flute Length (Decimal Inch) 6.2559
Body Length (Decimal Inch) 8.8949
Shank Length (Decimal Inch) 3.0000
Tool Application Drilling
Tool Performance General Purpose
Primary Workpiece Material Universal
Tip Length (Decimal Inch) 0.1693
Cutting Direction Right Hand
Coolant Through Yes
Number Of Flutes 2
$488.38
