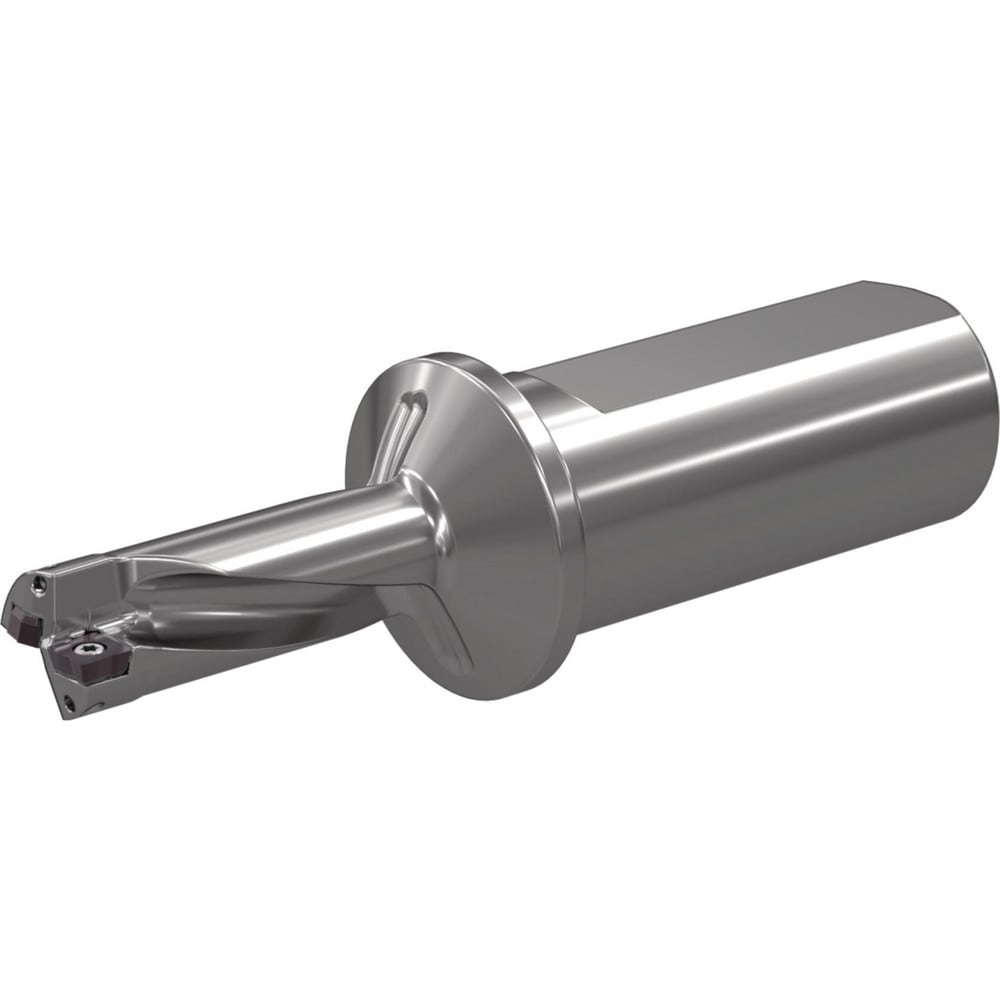

Brand: Widia / Part #: 5578714

Brand: Widia / Part #: 5578714


Item #: 90988973
Brand: Widia
Model #: 5578714

Product Specifications

Maximum Drill Depth 4.4060 in
Drill Depth by Diameter Ratio 2xD
Maximum Depth of Cut (mm) 111.92
Shank Type Weldon Flat
Shank Diameter (mm) 40.0000
Shank Diameter (Decimal Inch) 1.5748
Cutting Direction Right Hand
Drill Body Length to Flange (mm) 160.00
Toolholder Style TCF
Nose Diameter (Mm) ( - 2 Decimals) 55.00
Overall Length (mm) 231.9200
Overall Length 231.92
Through Coolant Yes
Series Top Cut 4
Flute Length (mm) 155.90
Shank Length (mm) 70.000
Gage Length (mm) 161.92
Primary Workpiece Material Non-Ferrous Metal; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel
Primary Workpiece Material Code P; S; K; M; N
Number of Shank Flats 1
Flute Type Helical Flute
Maximum Cutting Diameter (mm) 55.00
Projection (mm) 161.920
Number Of Flutes 2
Coolant Through Yes
$557.34
