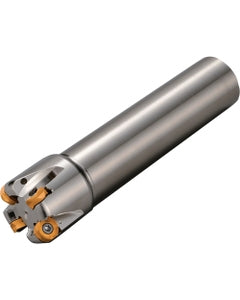

MRW 40S32124T RAD-8 Series, Standard Length Shank, Radius End Mill
Item #: KY96THN06004
Brand: Kyocera Precision Tools
Model #: THN06004
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 40 mm |
| Functional Length (LF) | 160 mm |
| Cutting Diameter (DC) | 40 mm |
| Usable Length (LU) | 6 mm |
| Cutting Diameter Maximum (DCX) | 40 mm |
| Flute Count (NOF) | 4 |
| Cutting Item Count (CICT) | 4 |
| Coolant Supply Property (CSP) | Coolant Thru |
| Depth of Cut Maximum (APMX) | 0.2362″ |
| Style | MRW |
| Overall Length (OAL) | 160 mm |
| Cutting Direction (HAND) | Right Hand |
| Application | Contouring | Facing | Plunging | Profiling | Shouldering |
| Series/List # | MRW |
| Connection Diameter Machine Side (DCONMS) | 32 mm |
| Measurement Type | Metric |
| Master Insert Identification (MIID) | ROMU1204M0ER-GM | ROMU1204M0ER-SM | ROMU1204M0ER-GH |
| Model Number | 8838421 |
| Weight of Item (WT) | 2.4738 |
| Body Material | Steel |
| Head Length (LH) | 40 mm |
| Shank Length (LS) | 120 mm |
