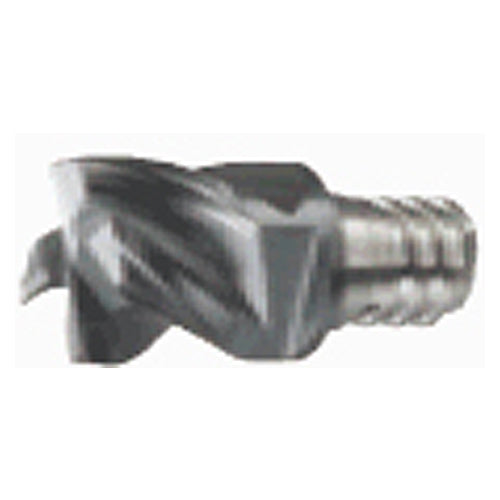

VEE120L09.0R00-04S08 AH715
Item #: TG436840478
Brand: Tungaloy
Model #: 6840478
| Product Specifications | |
|---|---|
| Application | | Shoulder Milling | |
| Grade | AH715 |
| Cutting Diameter (DC) | 12 mm |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Flute Count (NOF) | 4 |
| Measurement Type | Metric |
| Cutting Diameter Maximum (DCX) | 12 mm |
| fz(max) | 0.13 mm/tooth |
| Depth of Cut Maximum (APMX) | 9 mm |
| Tool Type | Solid carbide center cutting endmills 90 |
| Functional Length (LF) | 16.5 mm |
| Body Material | Carbide |
| Flute Helix Angle (FHA) | 45 Degrees |
