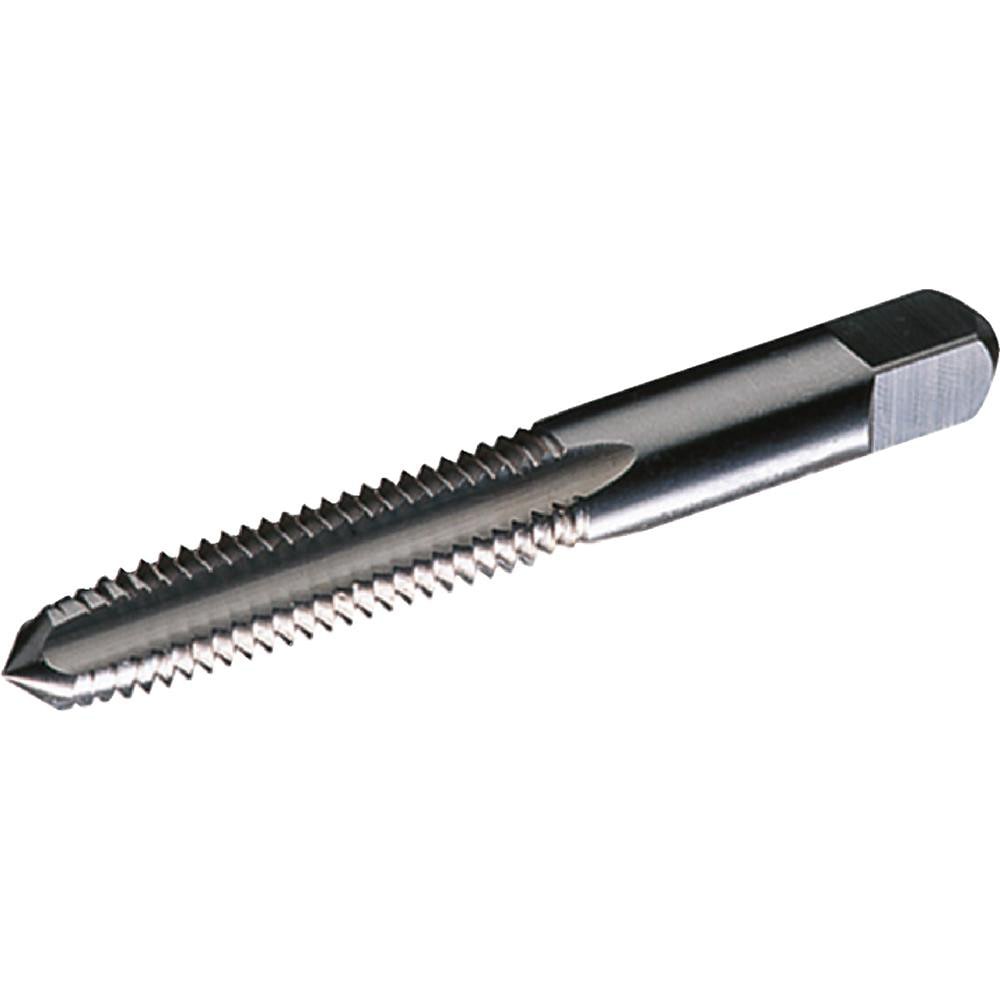

Brand: Widia / Part #: 2751001
Item #: 72387178
Brand: Widia
Model #: 2751001
Product Specifications
| Tap Type | Machine |
| Thread Size (Inch) | 5/16-24 |
| Class Of Fit | 2B |
| Number Of Flutes | 4 |
| Chamfer | Plug |
| Material | High Speed Steel |
| Coating/Finish | Uncoated |
| Threads per Inch | 24 |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Thread Standard | UNF |
| Thread Pitch (Decimal Inch) | 0.0417 |
| Overall Length (Decimal Inch) | 2.7188 |
| Thread Length (Decimal Inch) | 1.1250 |
| Thread Depth (Decimal Inch) | 1.1250 |
| Application | Metal |
| Shank Diameter (Decimal Inch) | 0.3180 |
| Square Length (mm) | 9.53 |
| Square Size (Decimal Inch) | 0.2380 |
| Series | 7303 |
| Shank Length (Decimal Inch) | 1.5938 |
