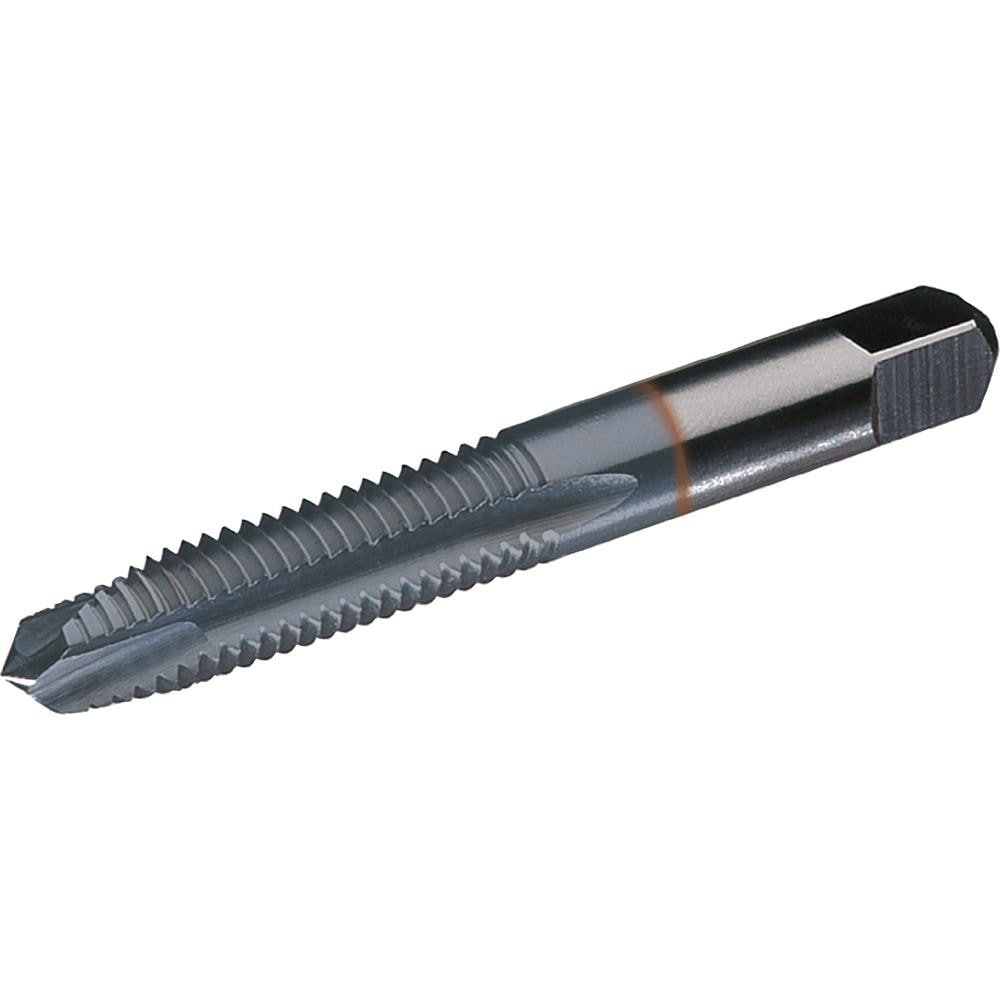

Brand: Widia / Part #: 3171117
Item #: 90894536
Brand: Widia
Model #: 3171117
Product Specifications
| Thread Size (Inch) | #5-44 |
| Number Of Flutes | 2 |
| Chamfer | Plug |
| Thread Limit | H2 |
| Class Of Fit | H2 |
| Coating/Finish | TiCN |
| Threads per Inch | 44 |
| Material | High Speed Steel |
| Coolant Through | No |
| Thread Direction | Right Hand |
| Thread Depth (Decimal Inch) | 0.6250 |
| Thread Pitch (Decimal Inch) | 0.0227 |
| Thread Standard | UNC |
| Thread Length (Decimal Inch) | 0.6250 |
| Overall Length (Decimal Inch) | 1.9375 |
| Shank Diameter (Decimal Inch) | 0.1410 |
| Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Series | 5301/2301 |
