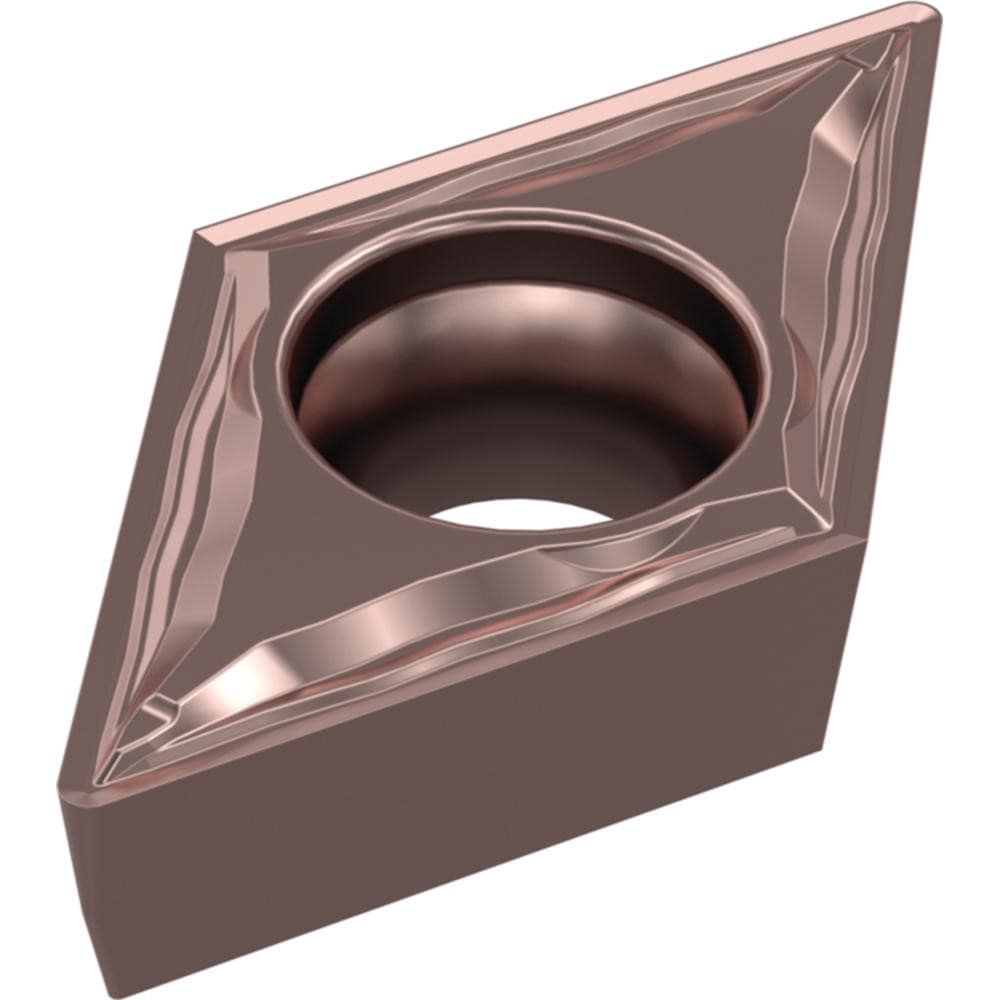

Brand: Widia / Part #: 4170299

Brand: Widia / Part #: 4170299


Item #: 10019388
Brand: Widia
Model #: 4170299

Product Specifications

Insert Style DCMT
Insert Shape Code D
Insert Size Code 21505
Insert Shape Diamond
Coating/Finish TiCN; TiN; ZrCN; Al2O3
Manufacturer Grade WP25CT
Corner Radius (Decimal Inch) 0.0079
Insert Material Carbide
Hole Diameter (Decimal Inch) 0.1102
Maximum Depth of Cut (Decimal Inch) 0.1526
Inscribed Circle (Decimal Inch) 0.2500
Insert Holding Method Screw
Insert Hand Neutral
Insert Thickness (Decimal Inch) 0.0938
Clearance Code C
Tolerance Code M
Included Angle 55.00
Relief Angle 7.000
Series DCMT
Coating Process MTCVD
Rake Positive
Wiper Edge No
Insert Length (Decimal Inch) 0.3052
Number Of Cutting Edges 2
Primary Workpiece Material Steel
Primary Workpiece Material Code P
Secondary Workpiece Material Cast Iron
Secondary Workpiece Material Code K
Ansi Code DCMT21505FP
Iso Code DCMT070202FP
Manufacturers Catalog Number DCMT21505FP
Cutting Direction Neutral
Coating Classification Multi-Layered CVD
Chip Breaker FP
Cutting Edge Style Sharp
Style DCMT
Width (Decimal Inch - 4 Decimals) 0.2500
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Internal Turning
$7.29
