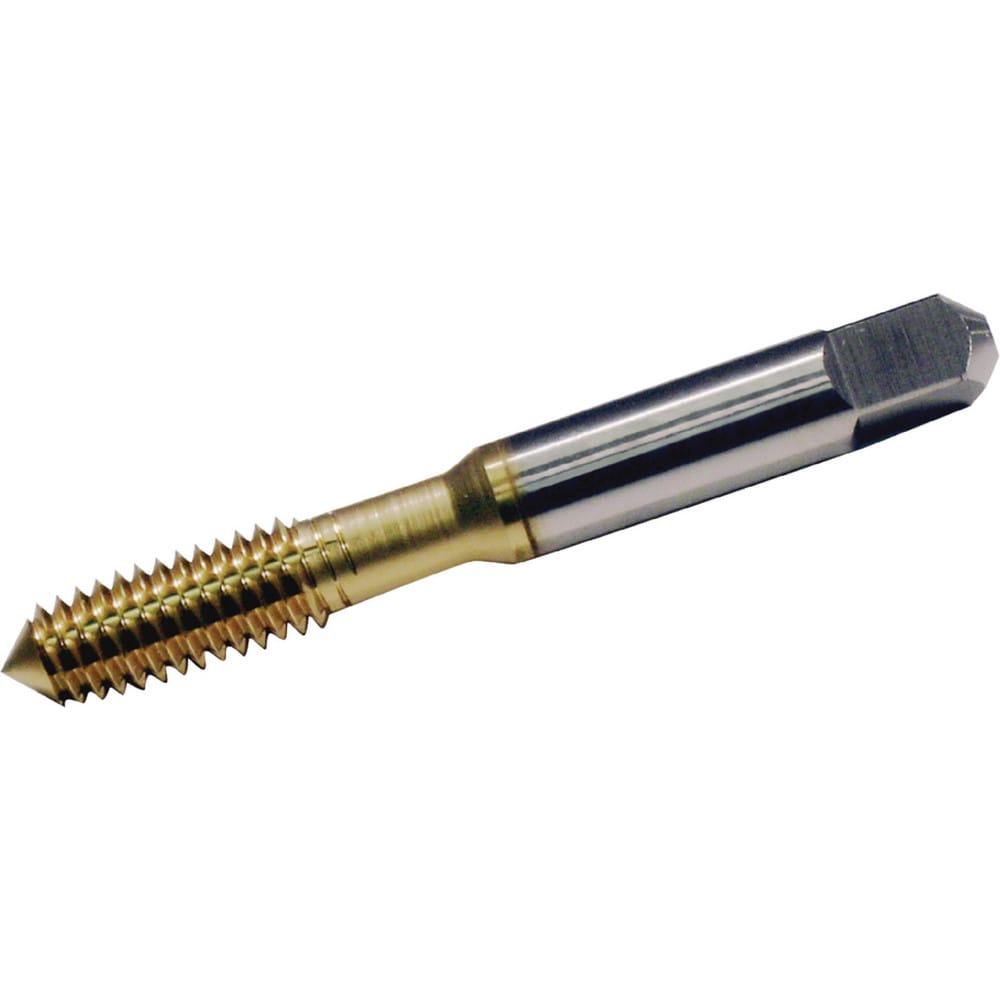

Brand: Widia / Part #: 2747451

Brand: Widia / Part #: 2747451


Item #: 98852205
Brand: Widia
Model #: 2747451

Product Specifications

Thread Size (Inch) #10-24
Overall Length (Decimal Inch) 2.3800
Chamfer Bottoming
Coating/Finish Uncoated
Thread Limit H4
Thread Pitch (Decimal Inch) 0.0417
Thread Standard UNC
Thread Direction Right Hand
Material High Speed Steel
Thread Length (Decimal Inch) 0.5000
Thread Depth 0.8750
Thread Depth (Decimal Inch) 0.8750
Shank Diameter (Decimal Inch) 0.1940
Neck Length (Decimal Inch) 0.3800
Square Length (Decimal Inch) 0.2500
Material Application Non-Ferrous Metals
Application Metal
Series 5902
Tap Type Blind; Through
Tapping Depth (Decimal Inch) 0.8750
Shank Length (Decimal Inch) 1.5050
Threads per Inch 24
Class Of Fit 2B
Coolant Through No
$14.83
