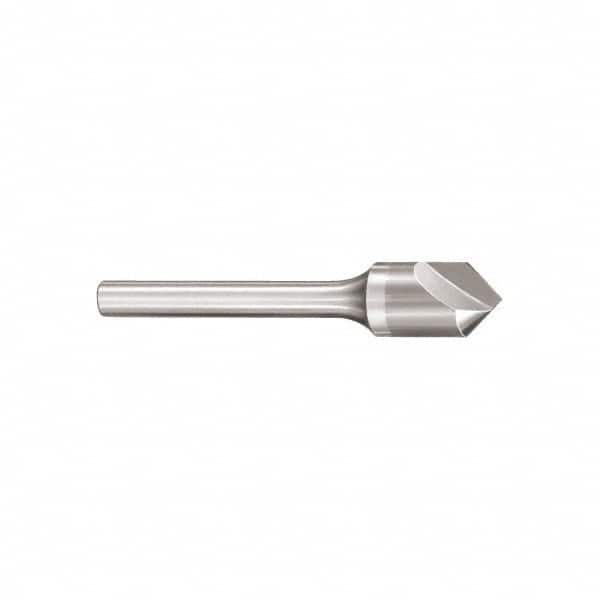

SGS - 3/4" Head Diam, 1/2" Shank Diam, 1 Flute 60° Solid Carbide Countersink
Item #: 40979858
Brand: SGS
Model #: 74019
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastic and other tough-to-machine materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Head Diameter (Inch) | 3/4 |
| Head Diameter (Decimal Inch) | 0.7500 |
| Number of Flutes | 1 |
| Included Angle | 60 |
| Countersink Material | Solid Carbide |
| Countersink Finish/Coating | Bright |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Shank Diameter (Inch) | 1/2 |
| Maximum Cutting Diameter (Inch) | 3/4 |
| Overall Length (Inch) | 3 |
| Overall Length (Decimal Inch) | 3.0000 |
| Countersink Application | Countersinking |
| End Type | Single |
| Shank Type | Straight |
| Shank Material | Steel |
| Includes Pilot | No |
| Countersink Head Only | No |
| Attachment Method | Shank |
| Cutting Direction | Right Hand |
| Maximum Cutting Diameter (Decimal Inch) | 0.7500 |
| PSC Code | 5133 |
| Material Application | Cast Iron; Composites; High Temperature Alloys; Non-Ferrous Metals; Plastics; Stainless Steel; Steel; Titanium |
