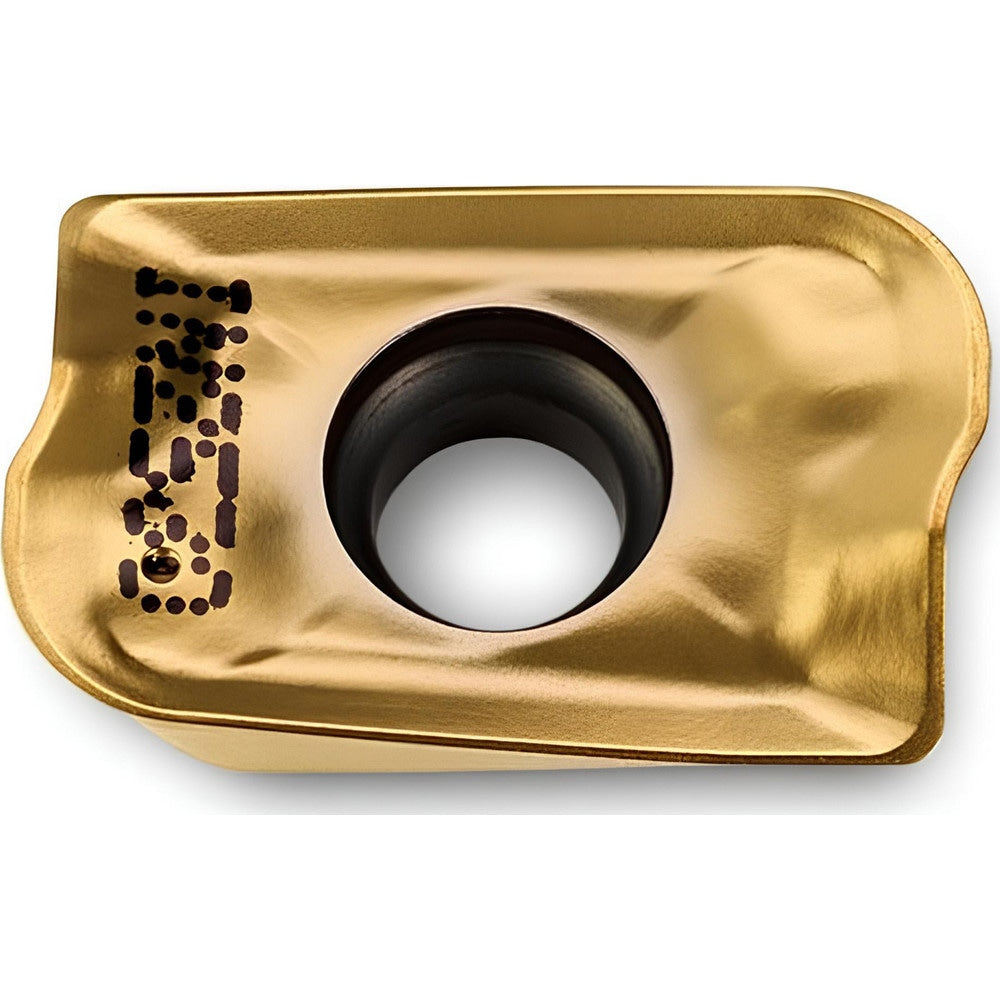

Brand: Ingersoll Cutting Tools / Part #: 5813380
Item #: 96127220
Brand: Ingersoll Cutting Tools
Model #: 5813380
Product Specifications
| Insert Style | AOMT |
| Insert Size Code | 170532 |
| Insert Material | Carbide |
| Manufacturer Grade | IN2530 |
| Thickness (Inch) | 7/32 |
| Inscribed Circle (Inch) | 27/64 |
| Corner Radius (Inch) | 1/8 |
| Insert Hand | Right Hand |
| Series | AOMT |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.6060 |
| Number Of Cutting Edges | 2 |
| Insert Shape | Parallelogram |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Ansi Code | AOMT170532R |
| Manufacturers Catalog Number | AOMT170532R IN2530 |
| Cutter Series Compatibility | 22J5G; 12J1G; 22J3G; 2L1G; 12N1G; 2J1G; 12L1G |
| Chip Breaker | None |
| Cutting Direction | Right Hand |
| Shape | Parallelogram |
| Length of Cut (mm) | 15.3900 |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | TiN; TiAlN |
| Included Angle Degree | 85 |
| Width (Decimal Inch - 4 Decimals) | 0.4210 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.6830 |
