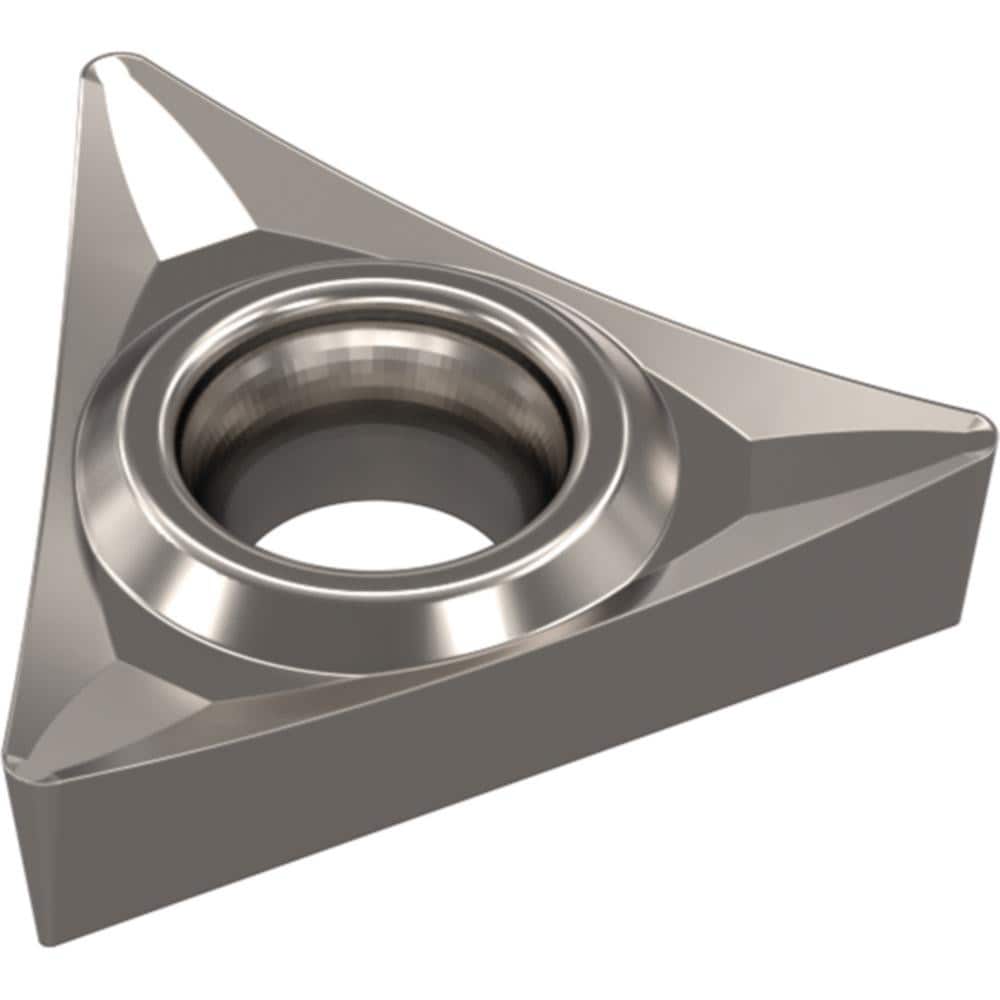

Brand: Widia / Part #: 6846593

Brand: Widia / Part #: 6846593


Item #: 93078541
Brand: Widia
Model #: 6846593

Product Specifications

Insert Style TCGT
Insert Shape Code T
Insert Size Code 2151
Insert Shape Triangle
Coating/Finish Uncoated
Manufacturer Grade WU10HT
Corner Radius (Decimal Inch) 0.0157
Insert Material Carbide
Hole Diameter (Decimal Inch) 0.1102
Maximum Depth of Cut (Decimal Inch) 0.2166
Inscribed Circle (Decimal Inch) 0.2500
Insert Holding Method Screw
Insert Hand Neutral
Insert Thickness (Decimal Inch) 0.0938
Clearance Code C
Tolerance Code G
Included Angle 60.00
Relief Angle 7.000
Series TCGT
Coating Process Uncoated
Rake Positive
Wiper Edge No
Insert Length (Decimal Inch) 0.4331
Number Of Cutting Edges 3
Primary Workpiece Material Non-Ferrous Metal
Primary Workpiece Material Code N
Ansi Code TCGT2151AL
Iso Code TCGT110204AL
Manufacturers Catalog Number TCGT2151AL
Cutting Direction Neutral
Coating Classification Uncoated
Chip Breaker AL
Style TCGT
Width (Decimal Inch - 4 Decimals) 0.2500
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Internal Turning
$18.94
