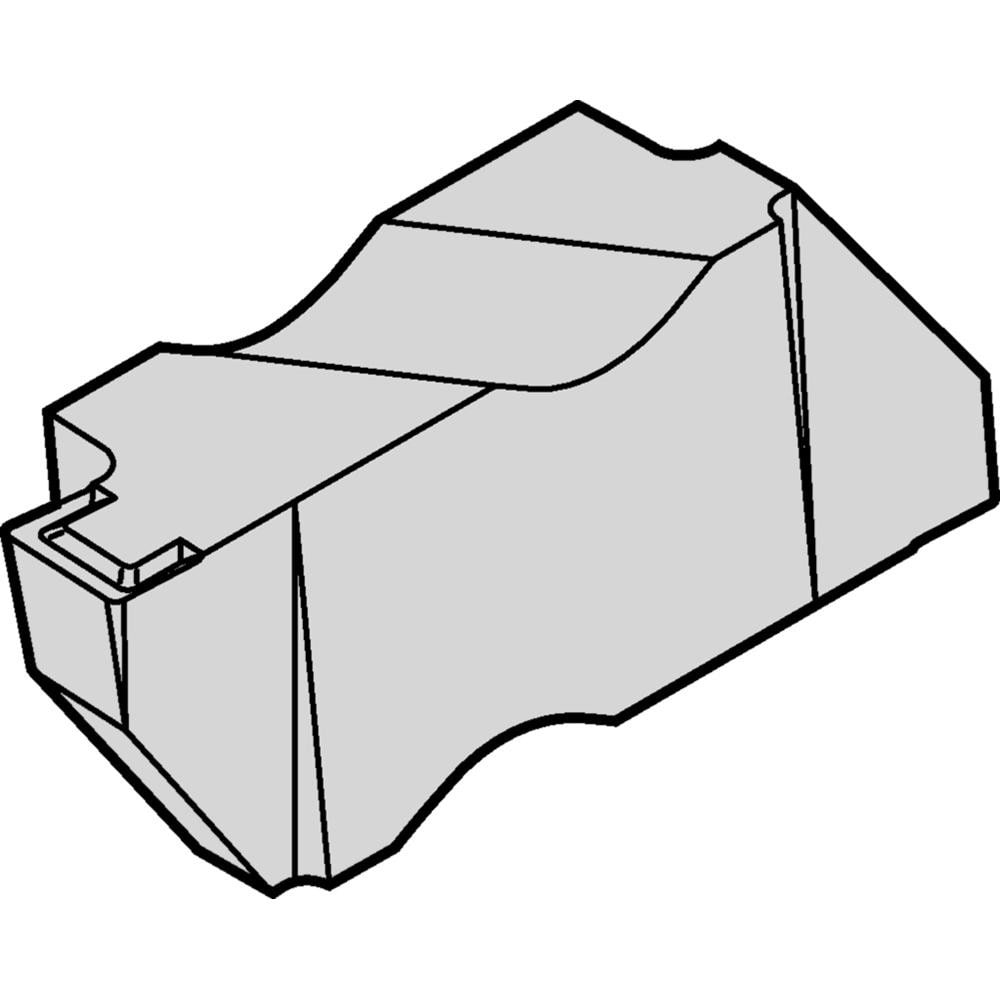

Brand: Widia / Part #: 3607129

Brand: Widia / Part #: 3607129


Item #: 94408317
Brand: Widia
Model #: 3607129

Product Specifications

Insert Style NG-K
Insert Size Code 2
Insert Size 2
Insert Material Carbide
Manufacturer Grade TN6010
Cutting Width (Decimal Inch) 0.0394
Cutting Width (mm) 1.000
Maximum Depth of Cut (Decimal Inch) 0.0504
Maximum Depth of Cut (mm) 1.28
Insert Holding Method Clamp
Cutting Height (mm) 1.28
Insert Hand Right Hand
Cutting Height (Decimal Inch) 0.0504
Corner Radius (mm) 0.09
Corner Radius (Decimal Inch) 0.0035
Lead Angle 11.000
Rake Positive
Multi-use Tool Yes
Cutting Tool Application Grooving; Turning
Series NG-K
Coating Process PVD
Rake Angle 10.000
Overall Length (Decimal Inch) 0.5111
Overall Length (mm) 12.9800
Primary Workpiece Material Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel
Primary Workpiece Material Code P; S; K; N
Secondary Workpiece Material Non-Ferrous Metal
Secondary Workpiece Material Code N
Ansi Code NG2M100RK
Iso Code NG2M100RK
Relief Angle 11
Maximum Corner Radius (Decimal Inch) 0.0035
Minimum Corner Radius (Decimal Inch) 0.0050
Manufacturers Catalog Number NG2M100RK
Insert Thickness (Decimal Inch) 0.2190
Minimum Groove Width (mm) 1.00
Thickness (Inch) 7/32
Type Top Notch Grooving Insert
Maximum Groove Width (mm) 1.00
Minimum Insert Width (mm) 3.84
Chip Breaker K
Insert Seat Size 2
Style Top Notch Grooving Insert
Insert Height (Decimal Inch) 0.2190
Full Radius No
Gage Diameter (Decimal Inch) 0.1875
Coating Classification PVD
Hole Diameter (Decimal Inch) 0.0000
Gage Diameter (Inch) 3/16
Overall Width 3.8400
Overall Width (Decimal Inch - 4 Decimals) 0.1510
Coating/Finish TiAIN
Number Of Cutting Edges 2
Single Or Double End Single
Groove Width (mm) 1.00
For Use With Grooving; Turning
Insert Thickness 5.56
Hole Diameter (Mm) ( - 0 Decimals) 0.0000
$21.65
