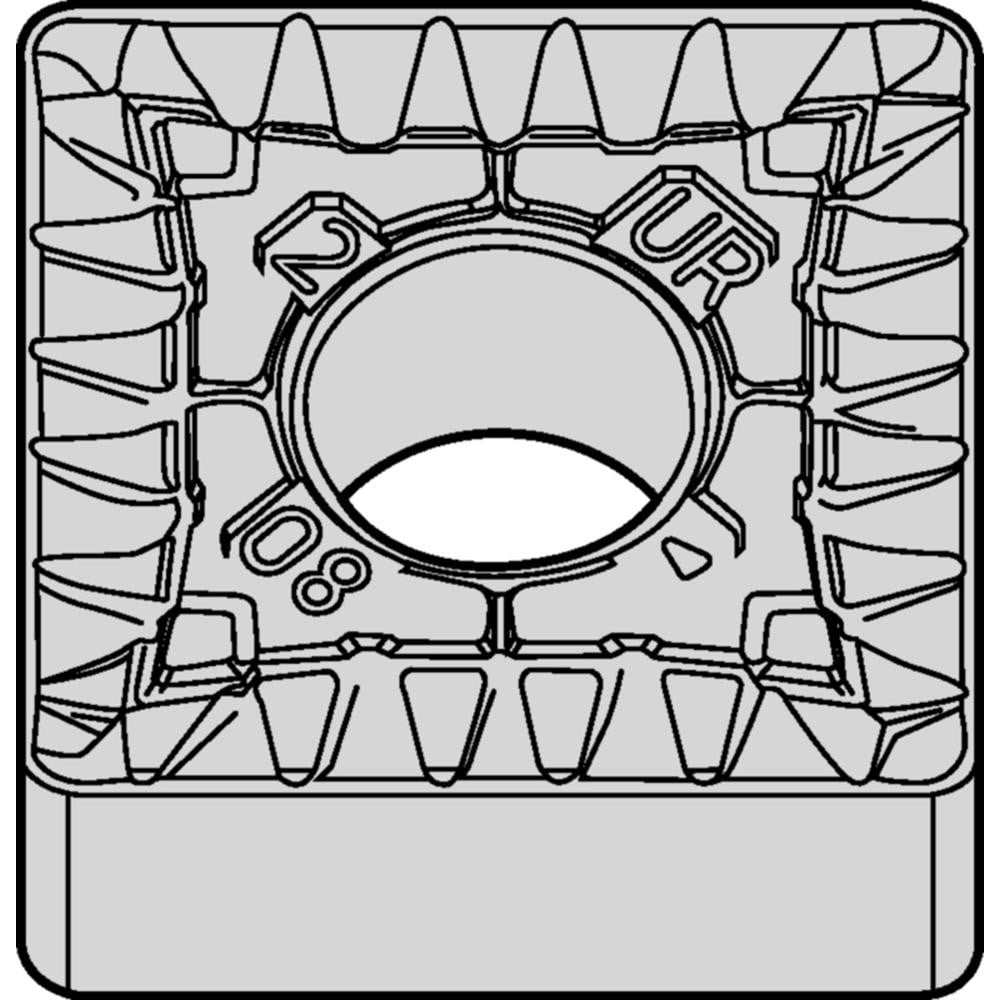

Brand: Widia / Part #: 4169501

Brand: Widia / Part #: 4169501


Item #: 93316669
Brand: Widia
Model #: 4169501

Product Specifications

Insert Style SNMG
Insert Shape Code S
Insert Size Code 644
Insert Shape Square
Coating/Finish TiOCN; TiCN; TiN; Al2O3
Manufacturer Grade WM35CT
Corner Radius (Decimal Inch) 0.0630
Insert Material Carbide
Hole Diameter (Decimal Inch) 0.3122
Maximum Depth of Cut (Decimal Inch) 0.3750
Inscribed Circle (Decimal Inch) 0.7500
Insert Holding Method Clamp
Insert Hand Neutral
Insert Thickness (Decimal Inch) 0.2500
Clearance Code N
Tolerance Code M
Included Angle 90.00
Relief Angle 0.000
Series SNMG
Coating Process MTCVD
Rake Negative
Wiper Edge No
Insert Length (Decimal Inch) 0.7500
Number Of Cutting Edges 8
Secondary Workpiece Material Stainless Steel; Super-alloys & Titanium; Steel
Secondary Workpiece Material Code P; S; M
Ansi Code SNMG644UR
Iso Code SNMG190616UR
Manufacturers Catalog Number SNMG644UR
Cutting Direction Neutral
Coating Classification Multi-Layered CVD
Chip Breaker UR
Style SNMG
Width (Decimal Inch - 4 Decimals) 0.7500
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Internal Turning
$16.18
