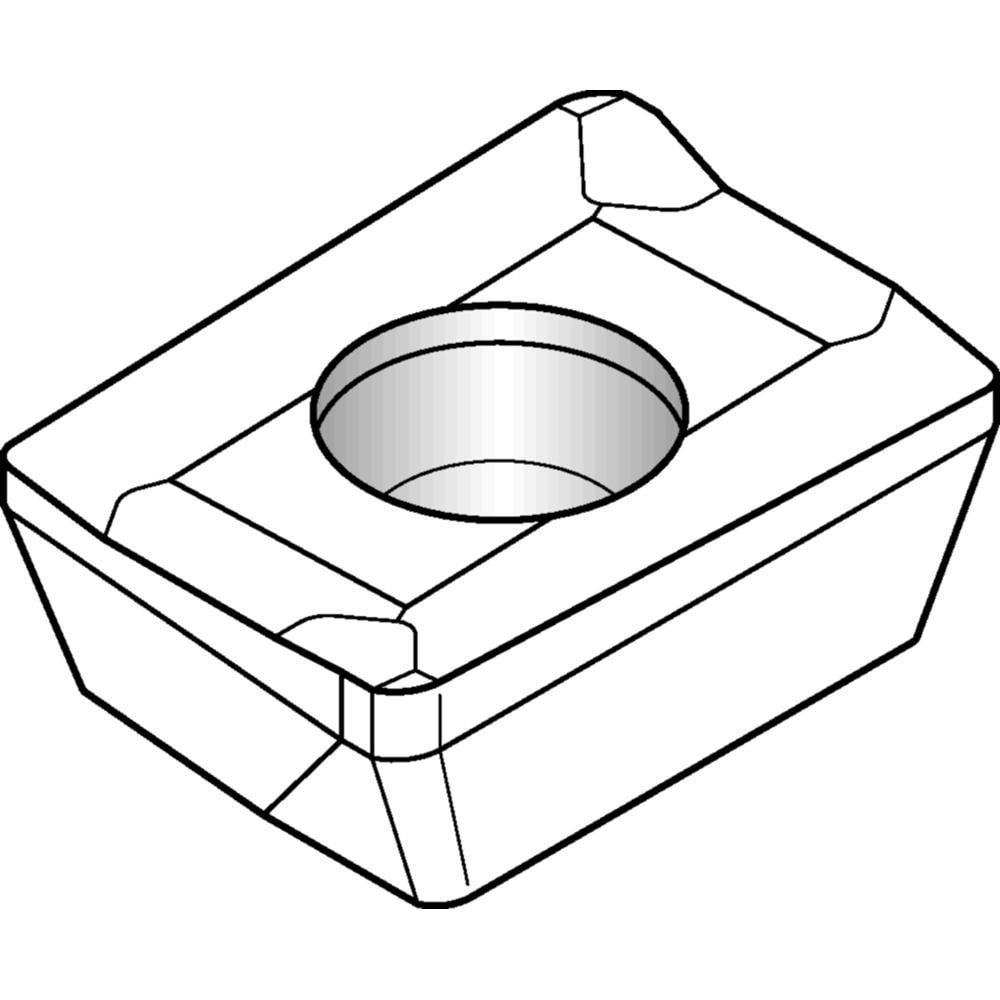

Brand: Widia / Part #: 3577940

Brand: Widia / Part #: 3577940


Item #: 94062270
Brand: Widia
Model #: 3577940

Product Specifications

Insert Style BDMT
Insert Size Code 11T3
Insert Size 11
Insert Material Carbide
Manufacturer Grade TN6405
Inscribed Circle (Decimal Inch) 0.2638
Corner Radius (Decimal Inch) 0.0665
Insert Hand Right Hand
Relief Angle 13.000
Series M6800
Coating Process PVD
Hole Diameter (Decimal Inch) 0.1100
Maximum Depth of Cut (Decimal Inch) 0.4330
Number Of Cutting Edges 2
Insert Shape Parallelogram
Rake Positive
Secondary Workpiece Material Hard Material; Cast Iron; Super-alloys & Titanium
Secondary Workpiece Material Code S; H; K
Ansi Code BDMT11T316ERML
Iso Code BDMT11T316ERML
Manufacturers Catalog Number BDMT11T316ERML
Cutter Series Compatibility M6800M BD11T3 IN
Chip Breaker ML
Cutting Direction Right Hand
Material Application High-Temperature Alloy; Stainless Steel; Steel
Shape Parallelogram
Length of Cut (mm) 11.0000
Insert Holding Method Screw
Coating Classification PVD
Single or Double Sided Insert Single
Coating/Finish TiAlN
Included Angle Degree 80
Width (Decimal Inch - 4 Decimals) 0.2638
Thickness (Decimal Inch - 4 Decimals) 0.1500
Multi-Use Tool Yes
Length (Decimal Inch - 4 Decimals) 0.4772
$14.03
