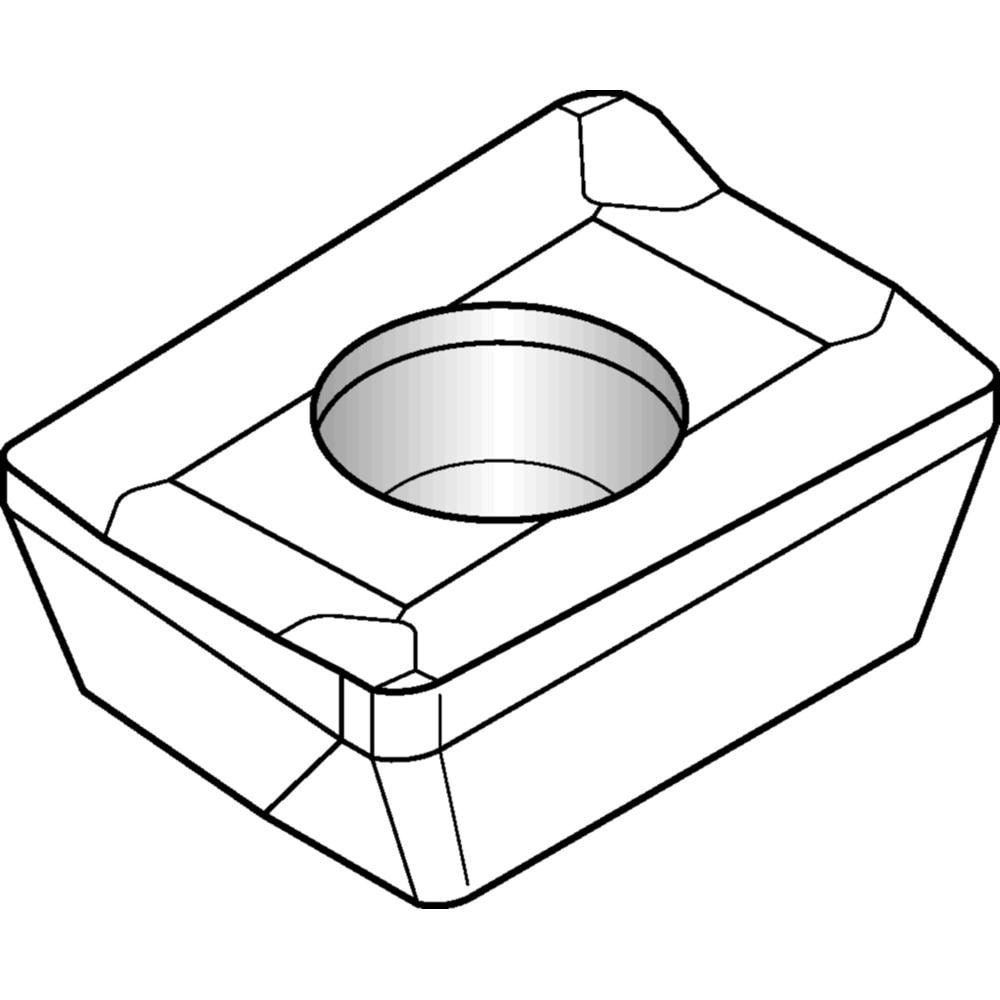

Brand: Widia / Part #: 3577941
Item #: 94061991
Brand: Widia
Model #: 3577941
Product Specifications
| Insert Style | BDMT |
| Insert Size Code | 11T3 |
| Insert Size | 11 |
| Insert Material | Carbide |
| Manufacturer Grade | TN6430 |
| Inscribed Circle (Decimal Inch) | 0.2638 |
| Corner Radius (Decimal Inch) | 0.0665 |
| Insert Hand | Right Hand |
| Relief Angle | 13.000 |
| Series | M6800 |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1100 |
| Maximum Depth of Cut (Decimal Inch) | 0.4330 |
| Number Of Cutting Edges | 2 |
| Insert Shape | Parallelogram |
| Rake | Positive |
| Secondary Workpiece Material | Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Secondary Workpiece Material Code | P; S; K; M |
| Ansi Code | BDMT11T316ERML |
| Iso Code | BDMT11T316ERML |
| Manufacturers Catalog Number | BDMT11T316ERML |
| Cutter Series Compatibility | M6800M BD11T3 IN |
| Chip Breaker | ML |
| Cutting Direction | Right Hand |
| Material Application | High-Temperature Alloy; Stainless Steel; Steel |
| Shape | Parallelogram |
| Length of Cut (mm) | 11.0000 |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | TiN; TiAlN |
| Included Angle Degree | 80 |
| Width (Decimal Inch - 4 Decimals) | 0.2638 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1500 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.4772 |
