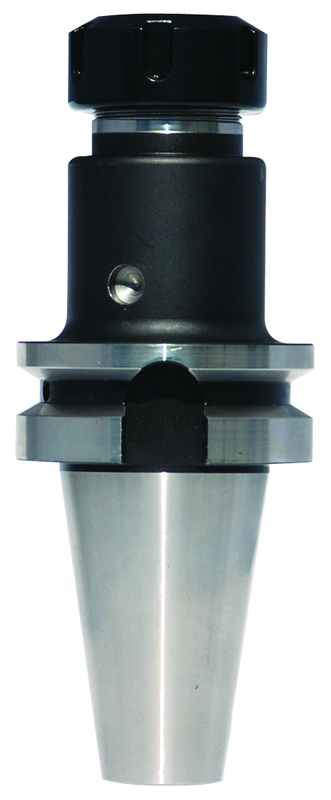

BT40 x ER40 x 80mm Collet Chuck

Item #: RH2224212R
Manufacturer: Rapidhold
Mfg #: 24212R

Technical Specifications:
*Brand Name: Rapidhold *Collet Style: ER40 *Head Length/Projection: 3.15 *Mount: BT40 *Nose Diameter: 2.49 *Overall Length: 5.72 *Shank Length: 3.38 *Size/Range: .0850 - 1.000 *Type: Collet Chuck *Weight: 7.47 lbs

Description:
*Produced according to AT3 specifications *Tools are made of a high quality alloy steel *Collet seat taper T.I.R. greater than 0.0002" *Through the spindle coolant capability *Dynamically balanced to G6.5 @ 15,000 RPM *All collet chucks are supplied with depth set screws *All balanced tools are supplied with QA certificate

Shipping Info:
*Actual Weight - 7.4700
