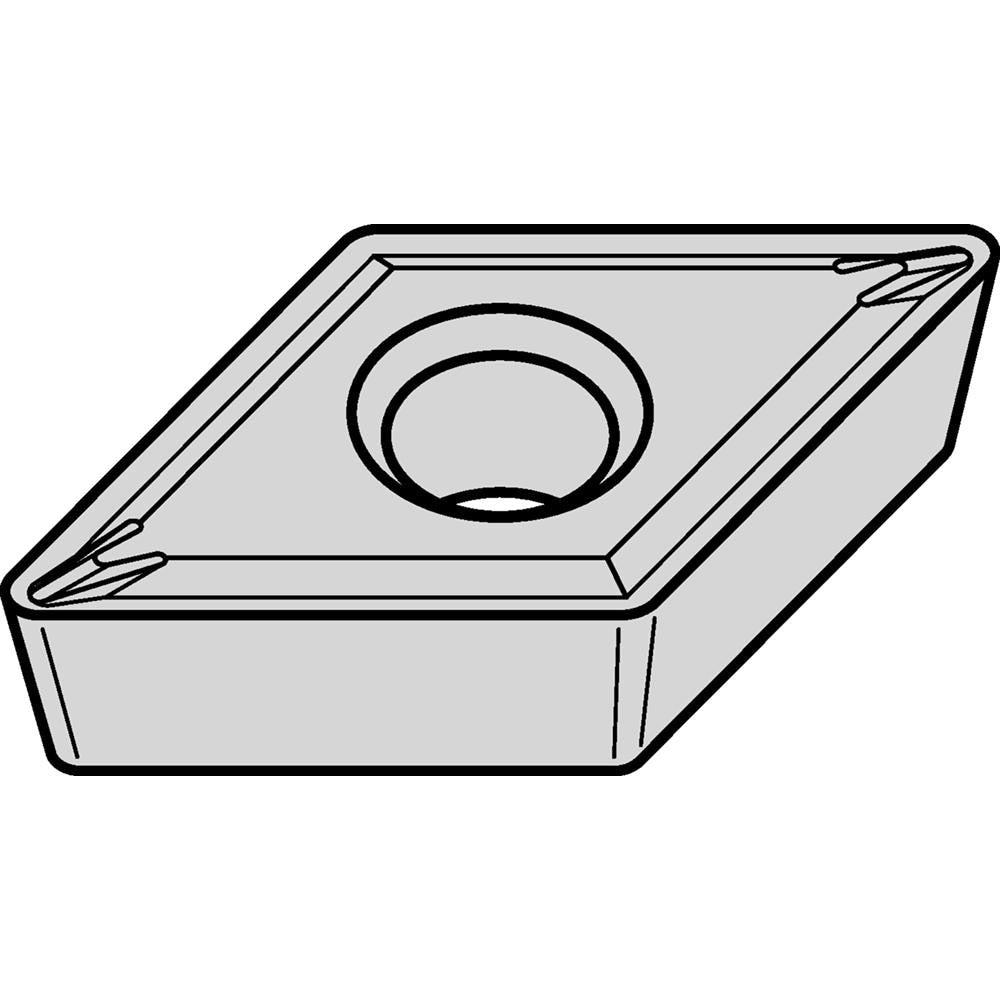

Brand: Widia / Part #: 4164501
Item #: 96213830
Brand: Widia
Model #: 4164501
Product Specifications
| Insert Style | DCGT |
| Insert Shape Code | D |
| Insert Size Code | 2150 |
| Insert Shape | Diamond |
| Coating/Finish | TiN; TiAlN |
| Manufacturer Grade | TN10U |
| Corner Radius (Decimal Inch) | 0.0039 |
| Insert Material | Carbide |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Maximum Depth of Cut (Decimal Inch) | 0.1526 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Clearance Code | C |
| Tolerance Code | G |
| Included Angle | 55.00 |
| Relief Angle | 7.000 |
| Series | DCGT |
| Coating Process | PVD |
| Rake | Positive |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.3052 |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Stainless Steel; Super-alloys & Titanium |
| Primary Workpiece Material Code | S; M |
| Secondary Workpiece Material | Steel |
| Secondary Workpiece Material Code | P |
| Ansi Code | DCGT21501P |
| Iso Code | DCGT0702011P |
| Manufacturers Catalog Number | DCGT21501P |
| Cutting Direction | Neutral |
| Coating Classification | PVD |
| Chip Breaker | 1P |
| Style | DCGT |
| Width (Decimal Inch - 4 Decimals) | 0.2500 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | External Turning; Internal Turning |
