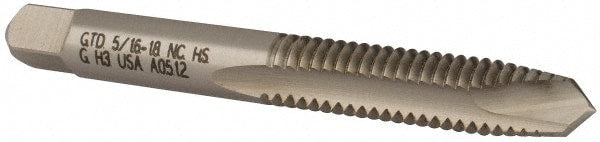

Brand: Widia / Part #: 2750111

Brand: Widia / Part #: 2750111


Item #: 70745161
Brand: Widia
Model #: 2750111

Product Specifications

Thread Size (Inch) 5/16-18
Number Of Flutes 2
Chamfer Plug
Thread Limit H3
Class Of Fit 2B/3B
Coating/Finish Uncoated
Threads per Inch 18
Material High Speed Steel
Coolant Through Yes
Thread Direction Right Hand
Thread Depth (Decimal Inch) 1.1250
Thread Pitch (Decimal Inch) 0.0556
Thread Standard UNC
Thread Length (Decimal Inch) 1.1250
Overall Length (Decimal Inch) 2.7180
Cnc Shank Yes
Oversize No
Shank Diameter (Decimal Inch) 0.3180
Application Through-Hole Threading
Tapping Depth (Decimal Inch) 1.1250
Square Length (Decimal Inch) 0.3750
Square Size (Decimal Inch) 0.2380
Material Application Non-Ferrous Metal
Series 5301/2301
Style Plug
$8.16
