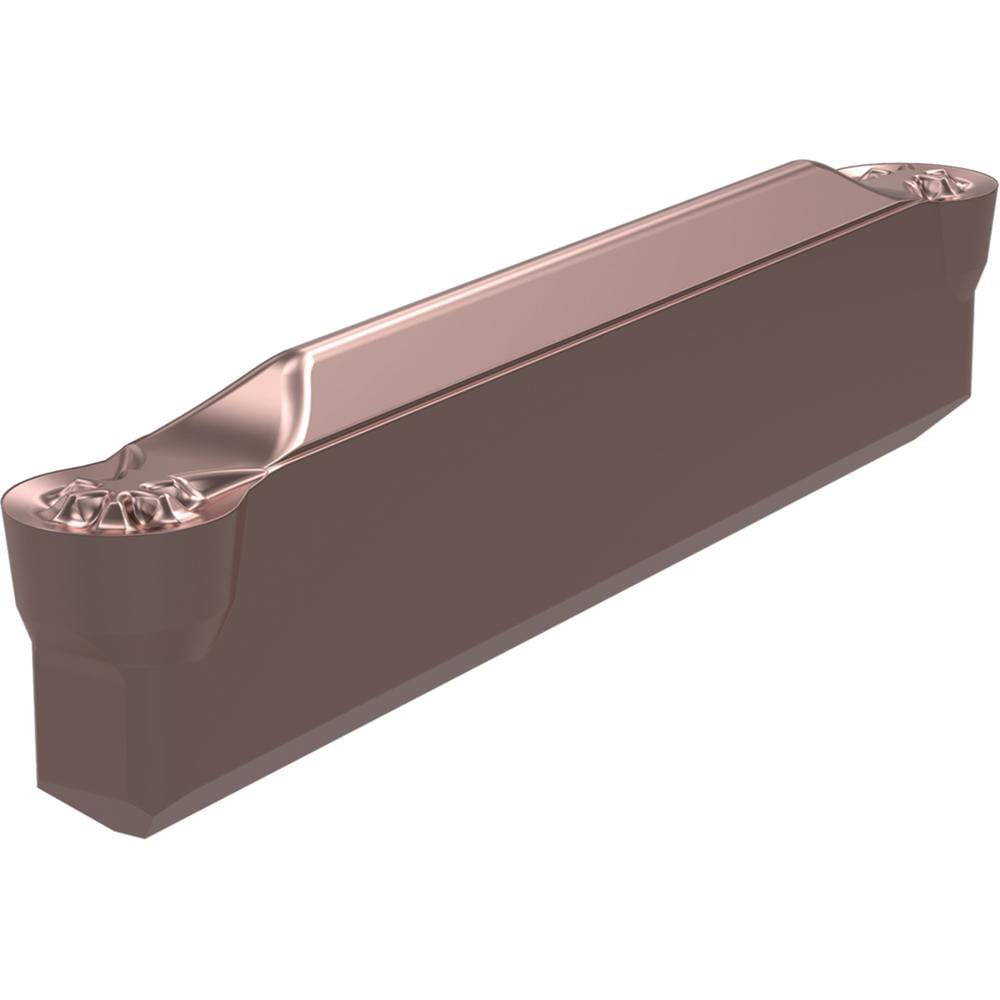

Brand: Widia / Part #: 4170188
Item #: 94497658
Brand: Widia
Model #: 4170188
Product Specifications
| Insert Style | WMTR |
| Insert Size Code | 6 |
| Insert Material | Carbide |
| Manufacturer Grade | WU25PT |
| Cutting Width (Decimal Inch) | 0.2410 |
| Maximum Depth of Cut (Decimal Inch) | 1.0139 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Corner Radius (Decimal Inch) | 0.1191 |
| Lead Angle | 0.000 |
| Rake | Positive |
| Multi-use Tool | Yes |
| Series | WMT |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 1.1330 |
| Primary Workpiece Material | Super-alloys & Titanium |
| Primary Workpiece Material Code | S |
| Secondary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Secondary Workpiece Material Code | P; K; M; N |
| Ansi Code | WMTR605M6UPC |
| Iso Code | WMTR605M6UPC |
| Relief Angle | 6 |
| Chip Breaker | PC |
| Coating Classification | PVD |
| Overall Width (Decimal Inch - 4 Decimals) | 0.2410 |
| Included Angle Degree | 90 |
| Coating/Finish | AlTiN |
| Number Of Cutting Edges | 2 |
