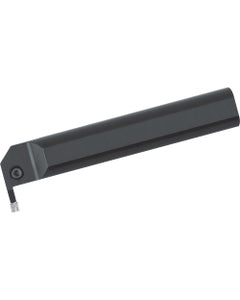

KIGMR 6540B8, Internal Grooving Toolholder
Item #: KY96THT02600
Brand: Kyocera Precision Tools
Model #: THT02600
| Product Specifications | |
|---|---|
| Cutting Width Minimum (CWN) | 8 mm |
| Connection Diameter Machine Side (DCONMS) | 40 mm |
| Cutting Width Maximum (CWX) | 8 mm |
| Cutting Direction (HAND) | Right Hand |
| Cutting Depth Maximum (CDX) | 20 mm |
| Coolant Supply Property (CSP) | External |
| Shank Height (H) | 36 mm |
| Application | | Int. Large Diameter Deep Grooving | |
| Minimum Bore Diameter (DMIN) | 65 mm |
| Body Material | Steel |
| Functional Width (WF) | 41 mm |
| Series/List # | KIGM |
| Functional Length (LF) | 300 mm |
| Measurement Type | Metric |
| Head Length (LH) | 41 mm |
| Shank Length (LS) | 259 mm |
| Overall Length (OAL) | 300 mm |
