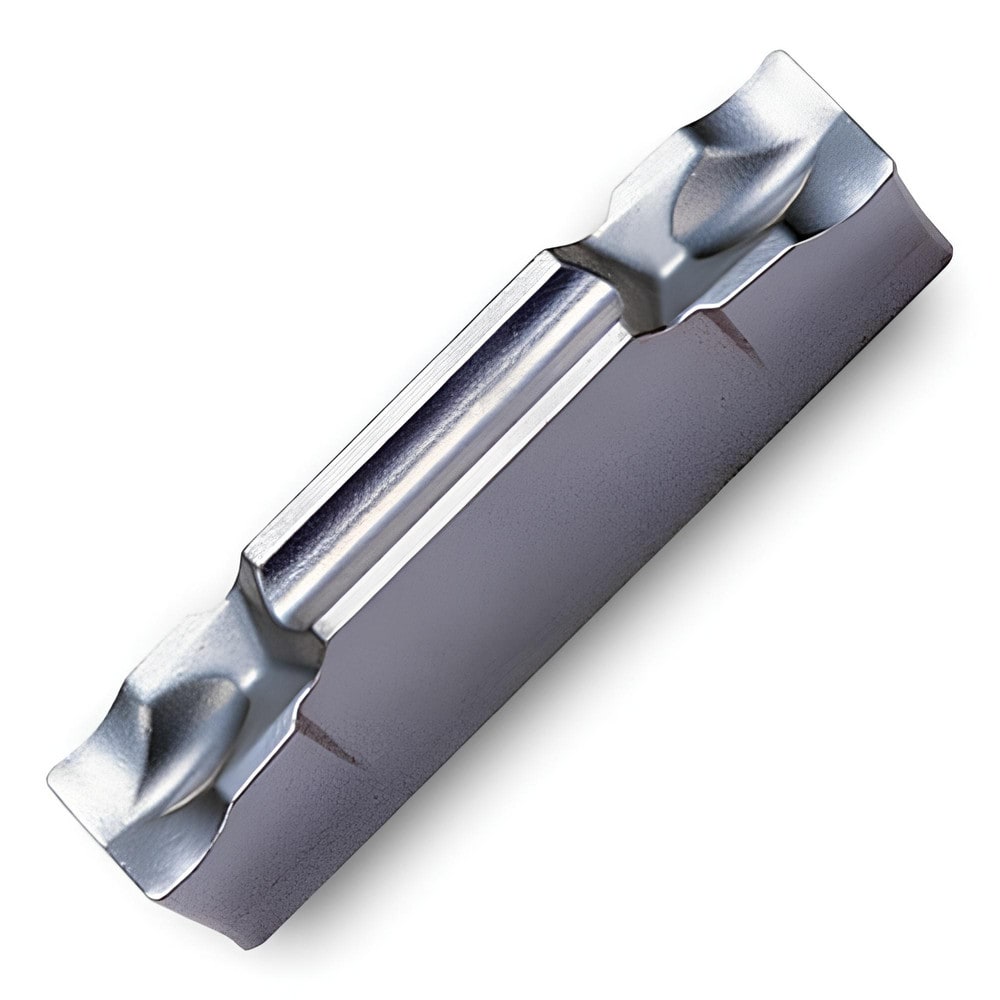

Brand: Ingersoll Cutting Tools / Part #: 6000649
Item #: 99514341
Brand: Ingersoll Cutting Tools
Model #: 6000649
Product Specifications
| Insert Style | TDJ |
| Insert Size Code | 1.4 |
| Insert Size | 1 |
| Insert Material | Carbide |
| Manufacturer Grade | TT8020 |
| Cutting Width (Decimal Inch) | 0.0550 |
| Maximum Depth of Cut (Decimal Inch) | 0.5910 |
| Insert Holding Method | Clamp |
| Cutting Height (Inch) | 5/32 |
| Insert Hand | Neutral |
| Corner Radius (Decimal Inch) | 0.0060 |
| Lead Angle | 0.000 |
| Rake | Positive |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Parting |
| Series | TDJ |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 0.6300 |
| Primary Workpiece Material | Stainless Steel; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Ansi Code | TDJ1.4-15RS |
| Relief Angle | 7 |
| Maximum Corner Radius (Decimal Inch) | 0.0060 |
| Manufacturers Catalog Number | TDJ1.4-15RS TT8020 |
| Insert Thickness (Decimal Inch) | 0.1570 |
| Maximum Groove Width (mm) | 1.40 |
| Chip Breaker | J |
| Insert Seat Size | 1 |
| Style | TDJ |
| Insert Height (Decimal Inch) | 0.1570 |
| Full Radius | No |
| Coating Classification | PVD |
| Hole Diameter (Decimal Inch) | 0.0000 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.0550 |
| Coating/Finish | TiCN |
| Number Of Cutting Edges | 2 |
| Single Or Double End | Double |
| Groove Width (mm) | 1.40 |
| For Use With | Grooving Toolholder; Parting |
