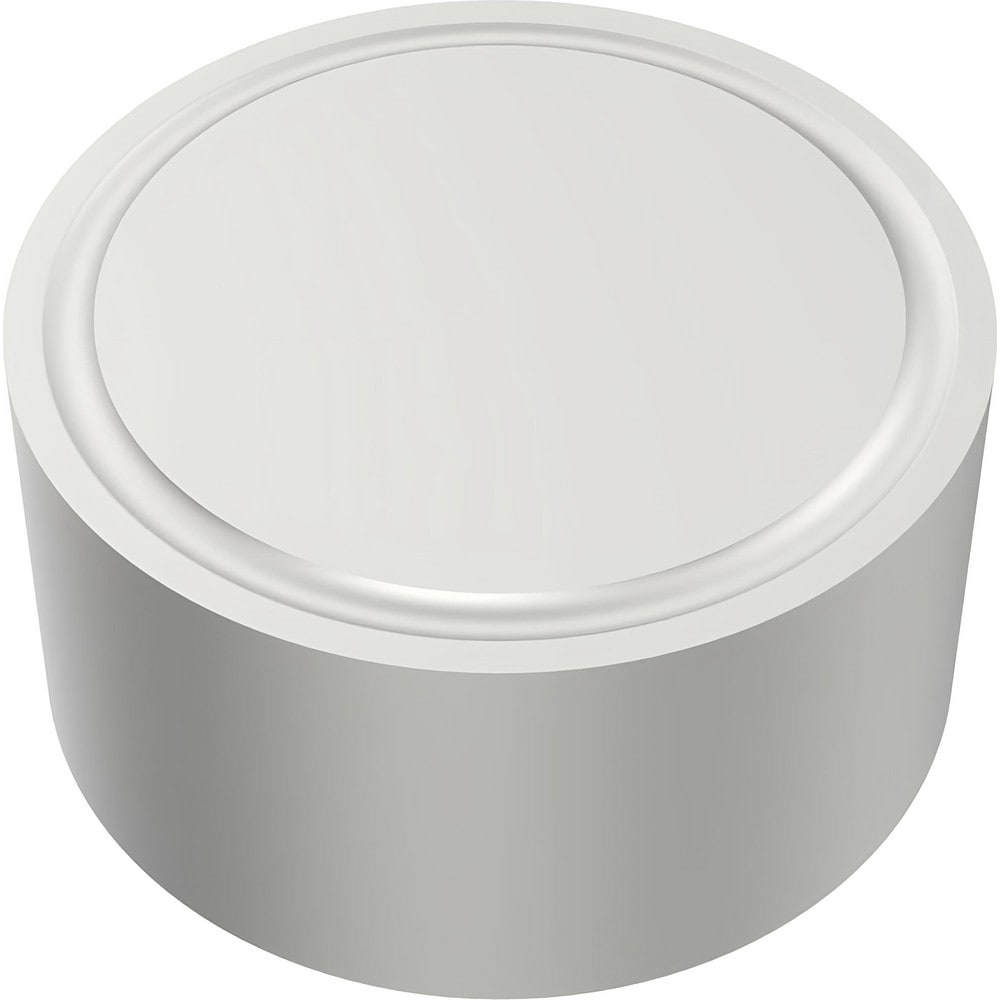

Brand: Seco / Part #: 10145837
Item #: 94202496
Brand: Seco
Model #: 10145837
Product Specifications
| Insert Style | RNMF |
| Insert Shape Code | R |
| Insert Size Code | 55 |
| Insert Shape | Round |
| Coating/Finish | TiCN; Al2O3 |
| Manufacturer Grade | TP1501 |
| Corner Radius (Decimal Inch) | 0.3750 |
| Insert Material | Carbide |
| Hole Diameter (Decimal Inch) | 0.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.3750 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.3180 |
| Clearance Code | N |
| Tolerance Code | M |
| Relief Angle | 0.000 |
| Series | RNMF |
| Coating Process | CVD |
| Rake | Negative |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.6250 |
| Number Of Cutting Edges | 8 |
| Primary Workpiece Material Code | P; K |
| Ansi Code | RNMF55-MR7 |
| Iso Code | RNMF55-MR7 |
| Cutting Direction | Neutral |
| Proprietary Coating Designation | Duratomic |
| Coating Classification | CVD |
| Chip Breaker | MR7 |
| Style | RNMF |
| Width (Decimal Inch - 4 Decimals) | 0.6250 |
| Multi-Use Tool | Yes |
| Full Radius | Yes |
| Multi-Use Application | Yes |
