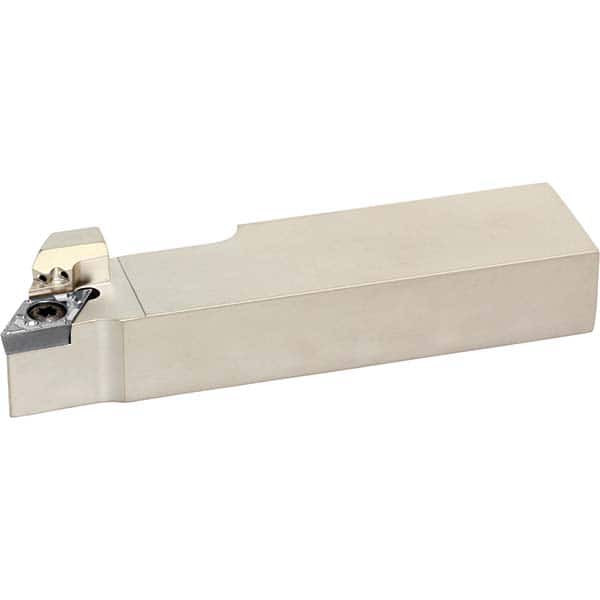

Kyocera - Indexable Turning Toolholders Hand of Holder: Right Hand Toolholder Style: SDJC
Item #: 16390544
Brand: Kyocera
Model #: 8863851
Product Specifications
Indexable Turning Toolholders; Hand of Holder: Right Hand ; Toolholder Style: SDJC ; Rake: Positive ; Rake Angle: 0 ; Series: SDJC-JCT ; Lead Angle: 93
| Hand of Holder | Right Hand |
| Toolholder Style | SDJC |
| Rake | Positive |
| Rake Angle | 0 |
| Series | SDJC-JCT |
| Lead Angle | 93 |
| Shank Width (mm) | 25.40 |
| Shank Width (Decimal Inch) | 1.0000 |
| Shank Height (mm) | 15.88 |
| Shank Height (Decimal Inch) | 0.6250 |
| Overall Length (Decimal Inch) | 4.75000 |
| Insert Compatibility | DCGT325 , DCMX325 , DCMT325 , DCET325 , DCGW325 , DCMW325 |
| Multi-Use Tool | Yes |
| Multi-Use Application | External Turning; Copying |
| Insert Holding Method | Screw Clamp |
| Back of Bar to Cutting Edge (mm) | 25.40 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.0000 |
| Insert Inscribed Circle (Inch) | 0.3750 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Toolholder Material | Steel |
| ISO Number | SDJCR82.5-3FFJCT |
| Through Coolant | Yes |
| Overall Length (mm) | 120.65 |
| Series | SDJC-JCT |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Insert Hand | Right Hand |
| Overall Length (Decimal Inch) | 4.75000 |
