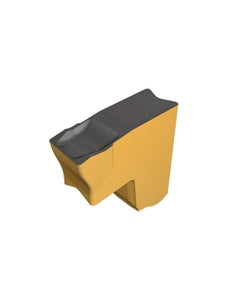

TAG R6.3C-4D IC808
Item #: EH6011443
Brand: Iscar
Model #: 6011443
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 1/4″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.0138″ |
| Max. Grooving Feed (fg(max)) | 0.0118 ″/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0.002″ |
| Min. Grooving Feed (fg(min)) | 0.0047 ″/rev |
| Cutting Edge Material | Carbide |
| Chip Breaker Type | C |
| Coating | TiAlN+AlTiN+TiN |
| Series/List # | TAG R6.3C-4D |
| Grade | IC808 |
| Tool Type | Parting & Grooving Inserts |
| Shape | 90° Rectangular |
| Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand |
| Body Material | Carbide |
| Application | | Groove Turn & Parting Inserts | Parting | |
