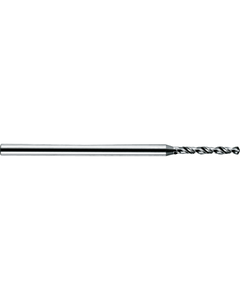

1.61 mm Dia. × 2 mm Shank Dia. × 38 mm OAL × 12 mm LCF, 120 Degrees, 7xD, 2 Flute, Uncoated - Solid Carbide Drills
Item #: FB506100161R
Brand: GMauvias
Model #: 6100161R
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 1.61 mm |
| Tool Type | Micro Drills |
| Length Group | 7xD |
| Usable Length (LU) | 12 mm |
| Coating | Uncoated |
| Length Chip Flute (LCF) | 12 mm |
| Connection Diameter Machine Side (DCONMS) | 2 mm |
| Overall Length (OAL) | 38 mm |
| Point Angle (SIG) | 120 Degrees |
| Flute Count (NOF) | 2 |
| Functional Length (LF) | 12 mm |
| Cutting Direction (HAND) | Right Hand |
