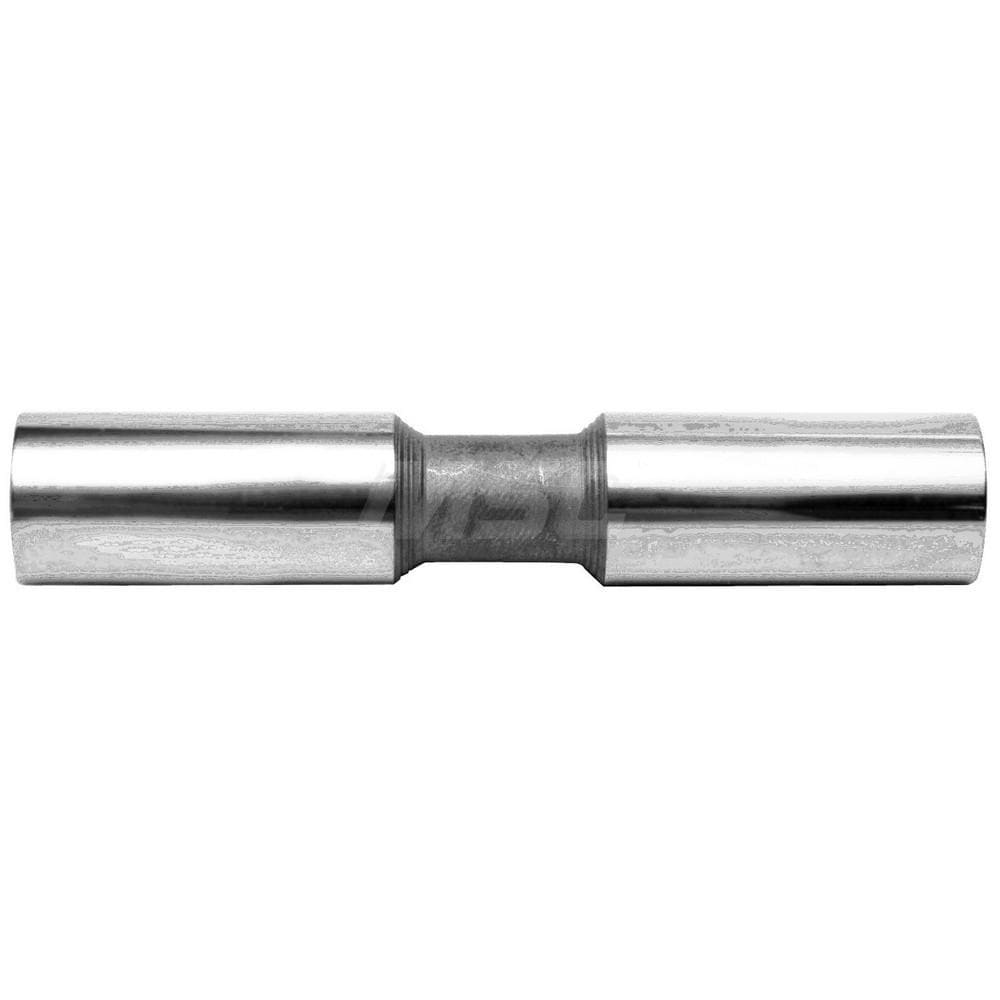

DC 5/8″ x DCONMS 5/8″ x APMX 1″ x OAL 6″

DC 5/8″ x DCONMS 5/8″ x APMX 1″ x OAL 6″


Item #: CW809587953
Brand: Precision Cutting Tools
Model #: 9587953

Product Specifications
Cutting Diameter (DC) 5/8″
Corner Radius (RE) 1/8″
Connection Diameter Machine Side (DCONMS) 5/8″
Grade H5003 Vulcan
Depth of Cut Maximum (APMX) 1″
Neck Diameter (DN) 0.6
Overall Length (OAL) 6″
Peripheral Effective Cutting Edge Count (ZEFP) 7
Cutting Edge Material Carbide
Tool Type Solid Carbide Endmill
Coating VARIANTIC
Length Group Long - Necked
Flute Count (NOF) 7
Coolant Supply Property (CSP) External
Flute Helix Angle (FHA) 40 Degrees
Shank Standard h6
Shank Type Round
Body Material Carbide
End Shape Corner Radius
Decimal Equivalent 0.625″
Usable Length (LU) 4″
Measurement Type Inch
Applicable Material | Cast Iron | Hard Materials | Stainless Steel | Steel | Super-Alloys / Titanium |
Series/List # 777
Application | Finish | HEM | Semi Finish | Shouldering |
Shank Size (SS) 5/8″
$361.74

2% Off All Online Orders
Use Code: 2%OFF

Best Price Guarantee - Email Us A Better Published Price and We'll Beat It
