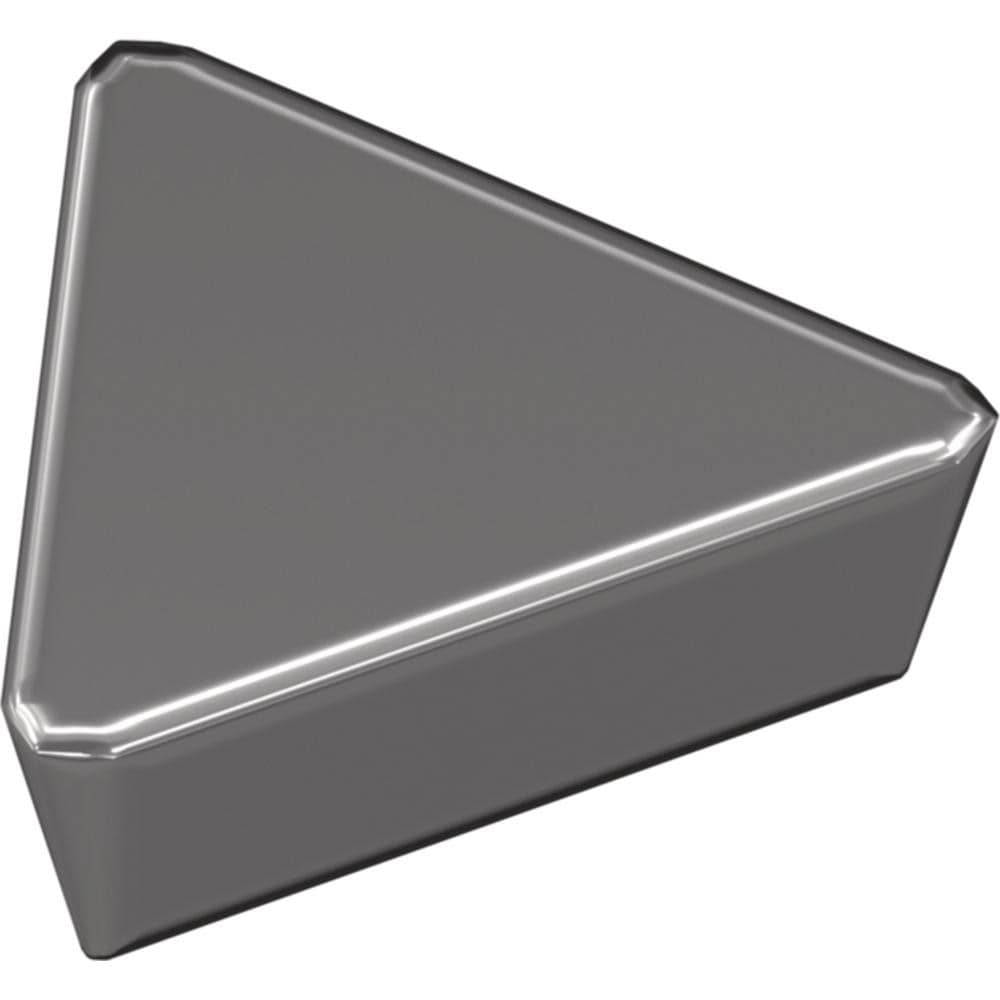

Brand: Widia / Part #: 2557814

Brand: Widia / Part #: 2557814


Item #: 94030830
Brand: Widia
Model #: 2557814

Product Specifications

Insert Style TPAN
Insert Size Code 2204
Insert Size 22
Insert Material Carbide
Manufacturer Grade THM
Thickness (Inch) 3/16
Inscribed Circle (Inch) 1/2
Inscribed Circle (Decimal Inch) 0.5000
Corner Radius (Decimal Inch) 0.0000
Insert Hand Right Hand
Relief Angle 11.000
Series TPAN
Coating Process Uncoated
Hole Diameter (Decimal Inch) 0.0000
Maximum Depth of Cut (Decimal Inch) 0.8646
Number Of Cutting Edges 3
Insert Shape Triangle
Rake Positive
Secondary Workpiece Material Non-Ferrous Metal; Cast Iron
Secondary Workpiece Material Code K; N
Ansi Code TPAN2204PDR
Iso Code TPAN2204PDR
Manufacturers Catalog Number TPAN2204PDR
Cutter Series Compatibility ISO
Chip Breaker None
Cutting Direction Right Hand
Material Application High-Temperature Alloy; Stainless Steel; Steel
Shape Triangle
Insert Holding Method Clamp
Coating Classification Uncoated
Single or Double Sided Insert Single
Coating/Finish Uncoated
Included Angle Degree 60
Width (Decimal Inch - 4 Decimals) 0.8646
Thickness (Decimal Inch - 4 Decimals) 0.1875
Multi-Use Tool Yes
Length (Decimal Inch - 4 Decimals) 0.8646
$8.50
