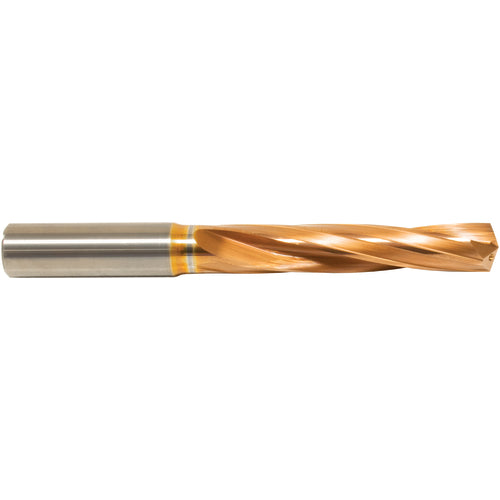

29/64″ Dia. × 1/2″ Shank × 3″ Flute Length × 5″ OAL, 5xD, 135°, ZrCN, 2 Flute, External Coolant, Round Solid Carbide Drill Series/List #NG04
Item #: MT711443743
Brand: Morse Cutting Tools
Model #: 1443743
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 29/64″ |
| Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 29/64″ |
| Tool Type | Drill |
| Decimal Equivalent | 0.4531″ |
| Point Shape | Self Centering |
| Length Group | 5xD |
| Measurement Type | Inch |
| Coating | ZrCN |
| Series/List # | DBIN26 |
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Usable Length (LU) | 3″ |
| Connection Diameter Machine Side (DCONMS) | 1/2″ |
| Length Chip Flute (LCF) | 3″ |
| Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 5″ |
| Point Angle (SIG) | 135 Degrees |
| Flute Count (NOF) | 2 |
| Flute Helix Angle (FHA) | 15 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Shank Type | Round |
| Body Material | Carbide |
