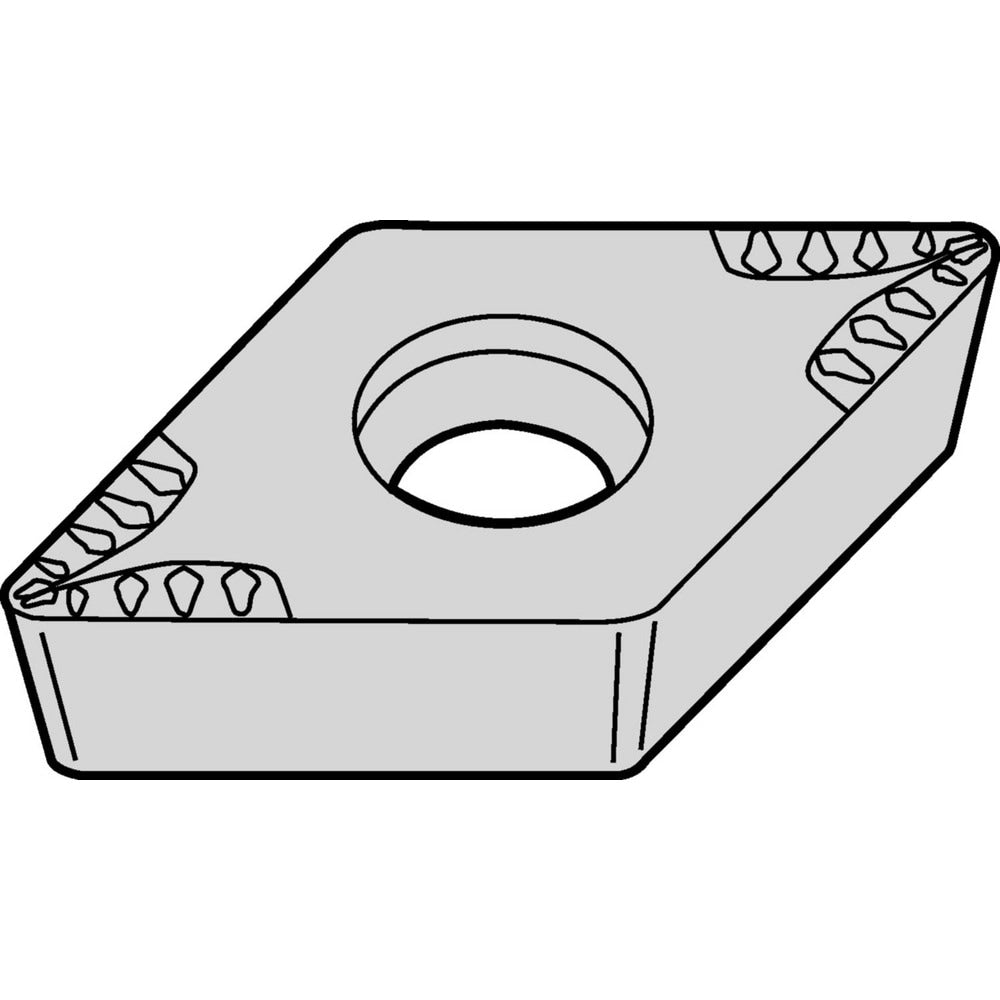

Brand: Widia / Part #: 6863460

Brand: Widia / Part #: 6863460


Item #: 95933610
Brand: Widia
Model #: 6863460

Product Specifications

Insert Style DCMT
Insert Shape Code D
Insert Size Code 3251
Insert Shape Diamond
Coating/Finish AlTiN
Manufacturer Grade WU25PT
Corner Radius (Decimal Inch) 0.0157
Insert Material Carbide
Hole Diameter (Decimal Inch) 0.1732
Maximum Depth of Cut (Decimal Inch) 0.2289
Inscribed Circle (Decimal Inch) 0.3750
Insert Holding Method Screw
Insert Hand Neutral
Insert Thickness (Decimal Inch) 0.1563
Clearance Code C
Tolerance Code M
Included Angle 55.00
Relief Angle 7.000
Series DCMT
Coating Process PVD
Rake Positive
Wiper Edge No
Insert Length (Decimal Inch) 0.4577
Number Of Cutting Edges 2
Primary Workpiece Material Stainless Steel; Super-alloys & Titanium; Steel
Primary Workpiece Material Code P; S; M
Ansi Code DCMT3251MU
Iso Code DCMT11T304MU
Manufacturers Catalog Number DCMT3251MU
Cutting Direction Neutral
Coating Classification PVD
Chip Breaker MU
Style DCMT
Width (Decimal Inch - 4 Decimals) 0.3750
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Internal Turning
